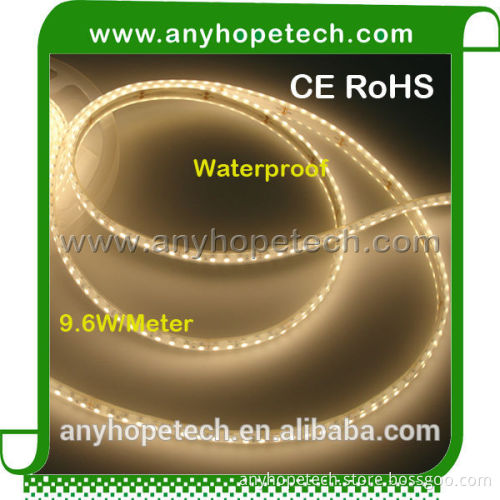

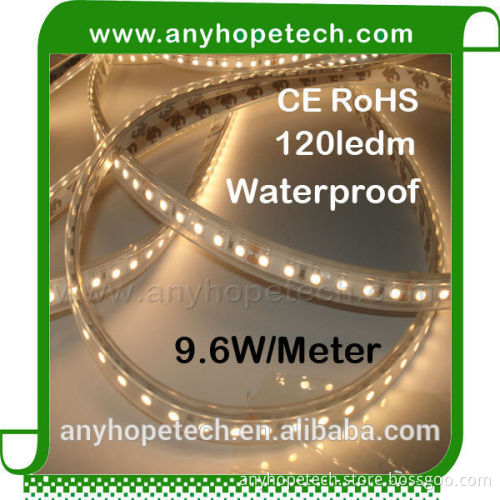

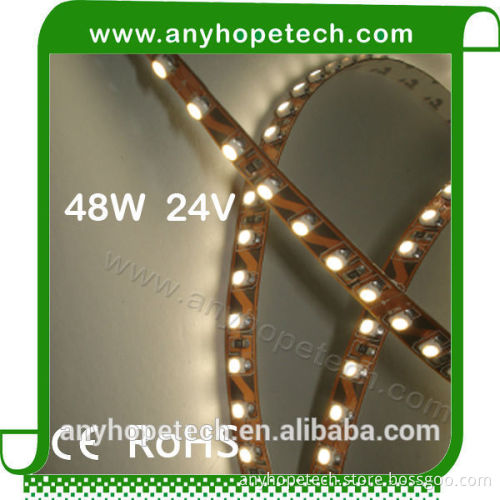

waterproof IP65 24 volt warm white 2400K single color flexible smd 3528 led strip light

  Product Description waterproof IP65 24 volt warm white 2400K single color flexible smd 3528 led strip light

Model: AH-3528WW-24-120 Extensively applied in Backlighting, concealed lighting, channel letter lighting Decorative lights for holiday, event, show exhibition Architectural decorative lighting, boutique atmosphere lighting     Working Voltage:  DC24V   Power: 9.6W/Meter, 48W/Roll   LED QTY: SMD3528 120LEDs/Meter,600LEDs/Reel   Length:  5Meters / Reel   View Angle: 120 Degrees   WaterProof: IP20, IP65, IP67, IP68

LED Flex Strip Type	IP Protection	Size	Reference Model Number
Non waterproof	IP20	8 x 2.2mm 0.31 x 0.08"	AH-3528-12/24-120
Epoxy / Silicone series	IP65	8 x 2.5mm 0.31 x 0.09"	AH-E3528-12/24-120
Silicone tube series	IP67	10 x 4mm 0.39 x 0.16"	AH-F3528-12/24-120
U-shape silicone series	IP67	10 x 5mm 0.39 x 0.19"	AH-U3528-12/24-120
PVC Tube + Epoxy series	IP68	10 x 4mm 0.39 x 0.16"	AH-G3528-12/24-120
All silicone series	IP68	10 x 5mm 0.39 x 0.19"	AH-S3528-12/24-120

  Color: Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple   Max Lumens per LED: 3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)   Color Temperature: 2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K   Color optional:        Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple

Model Number	Color	Typ.Flux (LM/M)	LED QTY (LEDs/M)	Voltage (DC)	Power (W/M)
AH-3528R-12/24-120	Red	360	120	12V 24V	9.6
AH-3528Y-12/24-120	Yellow	360
AH-3528B-12/24-120	Blue	420
AH-3528G-12/24-120	Green	600
AH-3528W-12/24-120	White	840
AH-3528WW-12/24-120	Warm White	720

    Super Bright Warm White: 840Lm/Meter   Super Bright Cool White: 960Lm/Meter are available.   Pitch: 8.3mm / 0.33"    DC12V (Every 3 LEDs cut at 25mm / 0.98")   DC24V (Every 6 LEDs cut at 50mm / 1.97")
    Dimension:  5000*8*2.2mm /195*0.31*0.09inches   PCB Color: Brown, White, Black (Optional)   Cable length: 35cm / 13.78"   Free end cap: 1 Piece / Meter (Opitional)   Free mounting clip: 2 Pieces / Meter (Opitional)   CRI: >80   CRI: >90 are available.   Lumen maintenance at 10,000hrs: 95%   Average life time: 50,000hrs   Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)   Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)   Warranty: 2 years   Certification: CE RoHS        Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.   Operating driver: LED Transformer with DC12V/DC24V output   Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer   The flexible single color strip connect to power supply:    Company Information              Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.           Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.     Our Services   Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.   Step (2): Sales Contract or Proforma Invoice. We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.   Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)   Step (4): Production Process   Step (5): Package and Shipping   Step (6): Air Way Bill Number         FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.         Packaging & Shipping    5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton       Accessories(Optional):
                                                    Certificate:   Factory:   Welcome to visit our website: www.anyhopetech.com   Hot-sale products:
