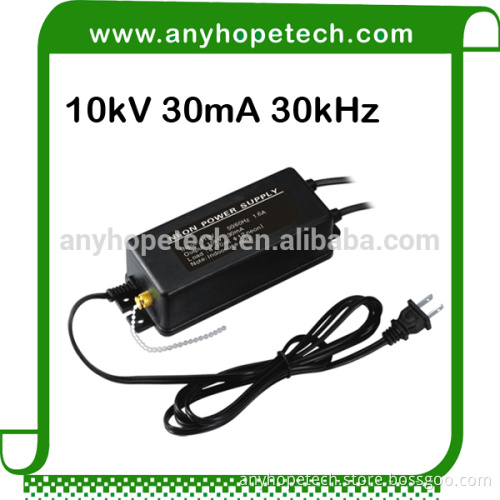

China prime quality 30mA transformator high voltage 10kv

  Product Description China prime quality 30mA transformator high voltage 10kv
Model: AH1-A410FL
  1. High voltage high frequency output;              2. Protection under abnormal state: see table below;
3. With in-line switch, American type dual flat plug, SPT-2 power cord, excellent for small neon signs;
4. Use only indoor;
5. Using environment: -25°C~40°C, relative humidity:0~90% ;
6. Automatic flashing function and dual light adjusting function; are available according to  customer's requirements;
7. High power factor>0.9;
8. All neon power supply can be changed to 220V input if you need.



Model	AH1-A410FL
Input	110V 50/60Hz 1.6A
Output	10kV 30mA 30kHz
Min loading(D12mm mercury/argon)	4m
Weight(kg)	0.783kgs/pc
Packing	20pcs/17.6kg
Packing size(mm)	558*235*273mm
Diameter tubing(mm)	7	8	9	10	11	12	13	15
Gas pressure(mmHg)	18	17	15	13	12	11	10	9
Load length in feet(clear or red neon)	4	4.5	5	6	7.5	9	10	12
Load length in feet(mercury/argon)	4.5	5	6	7.5	9	10	12	14
