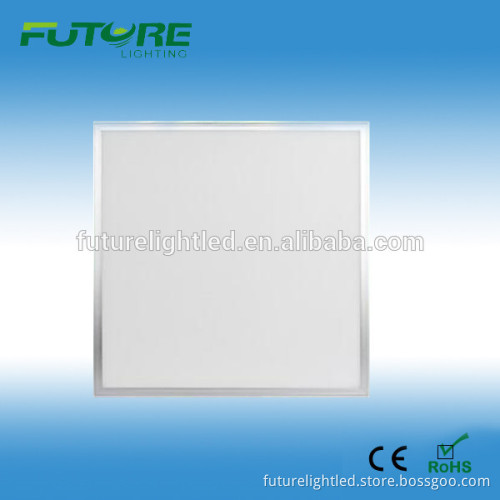

wholesale alibaba 24W SMD LED flat panel lighting

Specification

Setting Information
materail	PC cover and Aluminum
rated voltage	100-240VAC;50/60HZ
power	24W
Size	¢300x300x9mm
installation	surface /ceiling mounted
temperature	3000/4000/5000/6000K
LED chip	120 pcs SMD4014
Shelf life	5 years warranty

Model	LED  qty	Luminous	output
FT-PL33-12W	60pcs SMD4014	900-960lm	32-42VDC;0.28A
FT-PL33-18W	90pcs SMD4014	1400-1440lm	15-24VDC;0.84A
FT-PL33-24W	120pcs SMD4014	1900-1920lm	20-30VDC;0.84A

Product Description Product Details 1>.120pcs SMD4014 LEDs.
2>.120 degrees beam angle , suitable for all indoor lighting.
3>. High CRI more than 80, approximate to the nature light.
High luminous efficiency over 90lm/w, energy saving.
4>.Brand driver compatible with wide range voltage AC85-265V.Insulation:CLASSⅡ
5>.Working environment:10~80%RH，-20℃~50℃
Product Details 1>.Stable luminous, brightness degradation below 1% in 1.5 hours.
2>.Long lifespan with 30% lunimous maintenance in 50,000 hours.
3>.Environmental friendly, low decay, no UV or IR radiation, no noise.
4>.Excellent light spot, comfortable to eyes, no halation, no flicker, no strobe.
5>.Thick and solid aluminium material, low thermal resistance, good heat dissipation.
Product Details install:
1.Replace the plaster false ceiling
This is the most popular installation for the panel, remove the False ceiling and replace it with the panel
2.Suspended to the ceiling
1> Fix the 4 sockets to the ceiling. 2> Screw the 4 ropes to the sockets 3> Screw to the Led panel light. The height is adjustable by pulling the rope on the socket 3.Mounted on the ceiling or the wall
1> Fix the frame to the ceiling or wall with screws. 2> Screw the 4 clips to the panel. 3> push the panel to the frame and it will be clipped and fixed Product Details 1.Payment: T/T, L/C,Paypal,Western Union
2.Production lead time for 7-15 days
3.Sample can be delivered in 7 days
4.Shipping freight are quoted under your requests
5.Shipping port:Shenzhen,Mainland China

Model	Luminous	input	output
FT-PL33-24S-24W	1900-1920lm	100-265VAC	15-24VDC;0.84A
Size	PF	EFF.	Mounting Dimension
295X295(300X300)mm	>0.9	85%	282.2*282.2mm

Installation Process Applications Certifications Company Information FAQ Q1. Can I have a sample order for led light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 10-30 working days,and welcome to visit us.
Q3. Do you have any MOQ limit for led light order? A: No  MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.


Quality First,Customer paramount,Service Uppermost
pls feel free to contact us:
Lucy Zhang
Skype:futureledlight2 Tel:+86-0755-23322649-804
Whatsapp:+86-13728679614
