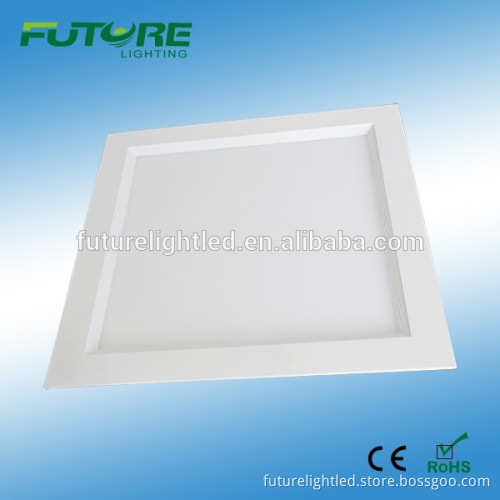

led panel light 600x600 the led flat panel wall light

  Product Description  led panel light 600x600 the led flat panel wall light Item number:FT-D604-W15S2-CW-15W

Item Type	Dimmable SMD 2835/5630 LED panel light
LED Light Source	SMD 5630 led
Input Voltage(V)	90-265VAC
Lamp Luminous Flux(lm)	1250-1380 lm
Lamp Luminous Efficiency	85-100lm/W
Color Temperature(CCT)	Cool  White
Working Temperature(°C)	-20 - +40°C
Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum
IP Rating	IP20
Power	15W,18W,20W
output	230-350mA
Size	(L)200x(W)200x(H)18mm
Cutout Size	¢180x180 mm
Beam Angle	120 degree
Color Temp.	warm white 2800-3200K;nature white 4000-4500K cool white 6000-6500k
Working Temperature	45 degrees Celsius at room temperature 25 degree Celsius
Color Rendering Index	CRI > 85
Shape	Square
Surface Finish	Silver,Black,White painting
Certifications	CE.RoHS,EMC,SAA,PSE
Warranty	3 years

high bright dimmable SMD 2835/5630 led downlight:

item	light Source	luminous	size	input	dimension	cutout  size
FT-D403-W8S1-8W	36pcs SMD2835	600-690lm	4 inch	90-265VAC	¢145x(H)18mm	¢130mm
FT-D503-W8S1-12W	60pcs SMD2835	905-970lm	5 inch	90-265VAC	¢180x(H)18mm	¢160mm
FT-D803-W15S1-15W	72pcs SMD2835	1150-1280lm	8 inch	90-265VAC	¢240x(H)18mm	¢220mm
FT-D1203-W20S1-20W	96pcs SMD2835	1660-1810lm	12 inch	90-265VAC	¢300x(H)18mm	¢280mm
FT-D604-W15S2-15W	36pcs SMD5630	1250-1380lm	6 inch	90-265VAC	(L)200x(W)200x(H)18mm	¢180x180mm
FT-D804-W18S2-18W	44pcs SMD5630	1480-1630lm	8 inch	90-265VAC	(L)240x(W)240x(H)18mm	¢220x220mm
FT-D1204-W20S2-20W	48pcs SMD5630	1700-1810lm	12 inch	90-265VAC	(L)300x(W)300x(H)18mm	¢280x280mm

  Characters & Advertages: 1.80%~90% energy saving than incandescent lamp 2.SMD 2835 or 5630 led chip 3.No flickering 4.No RF interference 5.No UV radiation 6.Proprietary design for excellent thermal management 7.Recessed mounted,easy installation and maintenance free 8.Superbright and low lumen attenuation 9.CE, RoHS,EMC,SAA compliant   Applications: 1.Cabinet Lighting 2.Funiture Lighting 3.Display Case Lighting 4.Accent Lighting 5.Under cabinet lighting 6.Ceiling lighting,home and office lighting     Trade Terms: 1.Payment: T/T, L/C,Paypal,Western Union 2.Production lead time for 7-15 days 3.Sample can be delivered in 3 days 4.Shipping freight are quoted under your requests 5.Shipping port: Shenzhen, Mainland China 6.NO MOQ         Company Information
