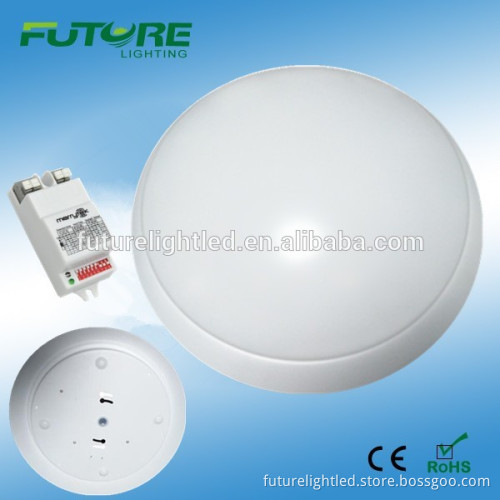

30w waterproof high quality daylight led ceiling light

Specification

Setting Information
materail	Acrylic Lens and Aluminum
rated voltage	85-265VAC;50/60HZ
power	30W
Size	¢460X123mm
installation	surface mounted
temperature	2700/3000/4000/5000/6000K
LED chip	60pcs SMD5730 Samsung
Shelf life	5 years

Product Description Product Details 1>.60pcs Samsung chip 5730 LEDs.
2>.200 degrees beam angle , suitable for all indoor lighting.
3>. High CRI more than 80, approximate to the nature light.
High luminous efficiency over 90lm/w, energy saving.
4>.Brand driver compatible with wide range voltage AC85-265V.
5>.Side Emitting led ceiling light,With copper PCB, aluminum / Iron housing and PMMA cover. PF>0.92. 50/60Hz,Conversion Efficiency>85%, CRI >80
6>.Sensor type,We can according to your needsto set up lighting time(20/50/60/70/80/90 min can be choose) to the Sensor item),anti-dazzle
Product Details 1>.Stable luminous, brightness degradation below 1% in 1.5 hours.
2>.Long lifespan with 30% lunimous maintenance in 50,000 hours.
3>.Environmental friendly, low decay, no UV or IR radiation, no noise.
4>.Excellent light spot, comfortable to eyes, no halation, no flicker, no strobe.
5>.Thick and solid aluminium material, low thermal resistance, good heat dissipation.
Product Details install:
1.Remove acrylic cover(twist ant-clockwise)
2.put the sreel plate base in desired position for installion and make the center hole distance/screw position on the wall/ceiling.
3.if requiired drill mounting holes/place wall plugs
4.insert the power cable in the steel plate base and install the steel plate base on the wall/ceiling
5.connect the power cable with the connecting terminal
6.put the acrylic cover on the steel plate base,twist the fiffuser colockwise to attach
Product Details 1.Payment: T/T, L/C,Paypal,Western Union
2.Production lead time for 7-15 days
3.Sample can be delivered in 5 days
4.Shipping freight are quoted under your requests
5.Shipping port:Shenzhen,Mainland China

Model	FT-CL-30W	FT-CL-30W-IR
LED light source	60pcs Samsung 5730	60pcs Samsung 5730
Input voltage	AC85-265V	AC85-265V
Sensor	No	Yes
IP rate	IP20 or IP44	IP20 or IP44

FT-CL-12W	FT-CL-18W	FT-CL-24W	FT-CL-30W
24pcs Samsung 5730	36pcs Samsung 5730	48pcs Samsung 5730	30pcs Samsung 5730
¢260X98mm	¢326X96mm	¢395X113mm	¢460X123mm
980-1020LM	1400-1480LM	1650-1800LM	2100-2350LM

Installation Process Applications Certifications Company Information FAQ Q1. Can I have a sample order for led light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 10-30 working days,and welcome to visit us.
Q3. Do you have any MOQ limit for led light order? A: No  MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
