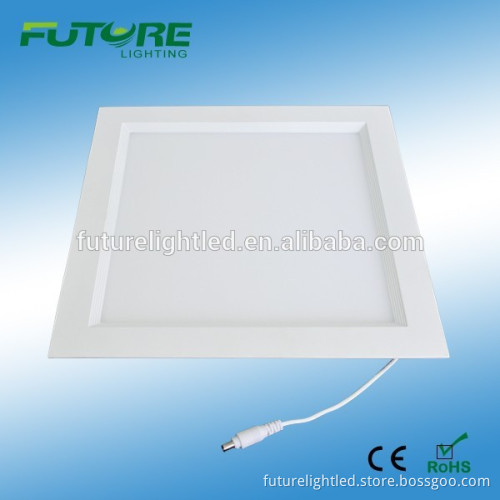

20W led light fixtures residential led panel light 30x30cm

  Product Description 20W led light fixtures residential led panel light 30x30cm Item number:FT-D1204-W20S2-CW-20W

Item Type	Dimmable SMD LED panel light
LED Light Source	SMD 5630 led
Input Voltage(V)	90-265VAC
Lamp Luminous Flux(lm)	1700-1810lm
Lamp Luminous Efficiency	85-100lm/W
Color Temperature(CCT)	Cool  White
Working Temperature(°C)	-20 - +40°C
Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum
IP Rating	IP20
Power	15-20W
output	230-350mA
Size	(L)300x(W)300x(H)18mm
Cutout Size	¢280x280mm
Beam Angle	120 degree
Color Temp.	warm white 2800-3200K;nature white 4000-4500K cool white 6000-6500k
Working Temperature	45 degrees Celsius at room temperature 25 degree Celsius
Color Rendering Index	CRI > 85
Shape	Square
Surface Finish	Silver,black,White painting
Certifications	CE.RoHS,EMC,SAA,PSE
Warranty	3 years

  high bright dimmable SMD 5630 led downlight:

item	light Source	luminous	size	input	dimension	cutout  size
FT-D403-W8S1-8W	36pcs SMD2835	600-690lm	4 inch	90-265VAC	¢145x(H)18mm	¢130mm
FT-D503-W8S1-12W	60pcs SMD2835	905-970lm	5 inch	90-265VAC	¢180x(H)18mm	¢160mm
FT-D803-W15S1-15W	72pcs SMD2835	1150-1280lm	8 inch	90-265VAC	¢240x(H)18mm	¢220mm
FT-D1203-W20S1-20W	96pcs SMD2835	1660-1810lm	12 inch	90-265VAC	¢300x(H)18mm	¢280mm
FT-D604-W15S2-15W	36pcs SMD5630	1250-1380lm	6 inch	90-265VAC	(L)200x(W)200x(H)18mm	¢180x180mm
FT-D804-W18S2-18W	44pcs SMD5630	1480-1630lm	8 inch	90-265VAC	(L)240x(W)240x(H)18mm	¢220x220mm
FT-D1204-W20S2-20W	48pcs SMD5630	1700-1810lm	12 inch	90-265VAC	(L)300x(W)300x(H)18mm	¢280x280mm

     Characters & Advertages: 1. 80%~90% energy saving than incandescent lamp 2. high quality 5630 SMD led chip 3. No flickering 4. No RF interference 5. No UV radiation 6. Proprietary design for excellent thermal management 7. Recessed mounted, easy installation and maintenance free 8. Superbright and low lumen attenuation 9. CE, RoHS ,EMC,SAA compliant   Applications of high power COB downlight: 1) Cabinet Lighting 2) Funiture Lighting 3) Display Case Lighting 4) Accent Lighting 5) Under cabinet lighting 6) Ceiling lighting,home and office lighting     Trade Terms: 1 Payment: T/T, L/C,Paypal,Western Union 2 Production lead time for 7-15 days 3 Sample can be delivered in 3 days 4 Shipping freight are quoted under your requests 5 Shipping port: Shenzhen, Mainland China 6 No MOQ       Company Information We can assure you of the quality,Favorable terms and Credit, And Assuring you that your requirements will have our best and prompt attention. pls feel free to contact us:
