High quality off grid dc to ac pure sine wave power inverter 12v 220v with charger

High quality off grid dc to ac pure sine wave power inverter 12v 220v with charger Product Description    Power for Safety and Comfort   Hot Sale pure sine wave inverter with battery charger  1kw 2kw 3kw 4kw 5kw 6kw 8kw 10kw 12kw Power Star W7 Pure Sine Wave Inverter with charger 1000w to 12000w Features: 1, Pure Sine Wave output wave form  2, Big Power for high overload ability 3, 3-step intelligent battery charging  4, 8 preset battery type selector for totally flat batteries 5, Less power consumption than convertional units 6, Ability to select power saver mode 7, Optional LCD display and Remote control swtich 8, Pure copper transformers  Power Star W7 Inverter 1000w to 12000w New Features: 1, Charge current control, 25% ~50%~75%~100% 2, Big LCD display  3, LCD remote control switch 4, AC priority / battery priority for solar system 5, Built-in MPPT solar controller for optional  6, New toroidal transformer for the lowest idle current.    Product Description    Power Star W7  inverter 1000W to 12000W SPECIFICATION:

Model No.	PSW7-1000	PSW7-2000	PSW7-3000	PSW7-4000	PSW7-5000	PSW7-6000	PSW7-8000	PSW7-10000	PSW7-12000
Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W	8000W	10000W	12000W
AC Input
Phase & waveform	Single phase & sinewave
Voltage	120VAC/230VAC
Acceptable Voltage	194-243VAC4-243VAC(wide mode)						154VAC~273VAC
Line Low Transfer	85V±4%/184(154 wide mode±4%)						154Vac±4%
Line Low Return	95V±4%/194(164 wide mode±4%)						164Vac±4%
Line high Transfer	135V±4%/253±4%						273Vac±4%
Line high Return	127V±4%/243±4%						263Vac±4%
Frequency	50Hz or 60Hz (auto sensing)
Line Low Transfer	47Hz for 50Hz,57Hz for 60Hz						40Hz ±0.3 for 50Hz
Line high Transfer	55Hz for 50Hz,65Hz for 60Hz						80Hz ±0.3 for 50Hz
Output
Phase & waveform	Single phase & sinewave(bypass mode sync to input)
Voltage	230VAC(bypass mode sync to input)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz±0.3Hz(bypass mode sync to input)
Crest Power	3 times of ratings
Short Circuit Protection	Yes,shutdown after 10 s
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V		24V/48V			48V
Minimum Start Voltage	10V for 12V,      20V for 24V,    40V for 48V						40Vdc
Low Battery Alarm	10.5V for 12V,    21V for 24V,    42V for 48V						44Vdc±1.2Vdc
Low Battery Transfer	10V for 12V,      20V for 24V,    40V for 48V						40Vdc±1.2Vdc
High Voltage Alarm	16V for 12V,      32V for 24V,    64V for 48V						64Vdc±1.2Vdc
Max Charging Current	70AA						70A	85A	100A
Over Charge Voltage	15.7V for 12V,    31.4V for 24V,  62.8V for 48V						62.8V
Transfer Efficiency
line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts						<75W
Indicators
LED /LCD	Line mode,Charging Mode,inverter mode, Fault
Protections	low battery,over charging,over temp,over load
Enviromental
Operating Environment	0-40℃,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	22	35	38	40	60	66	70
D X W X H(mm)	218X179X442			218X179X598			750x520x310

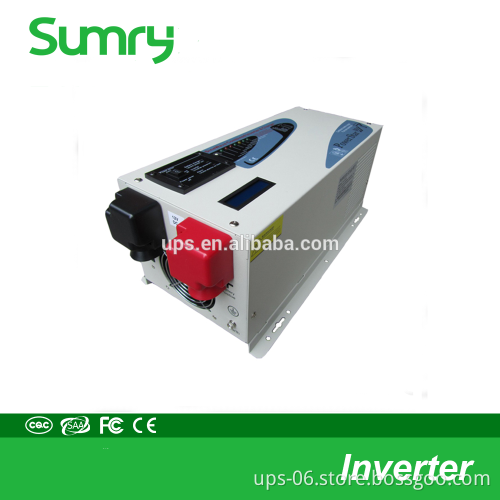

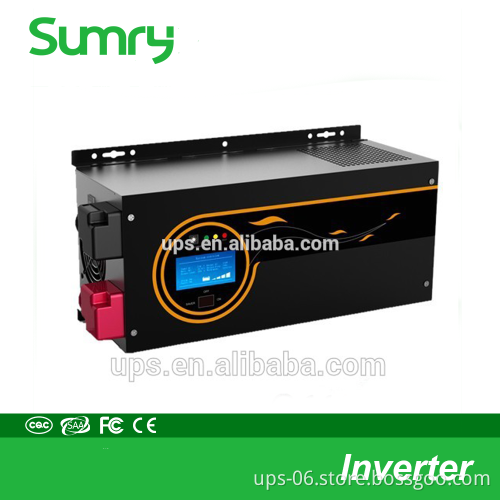

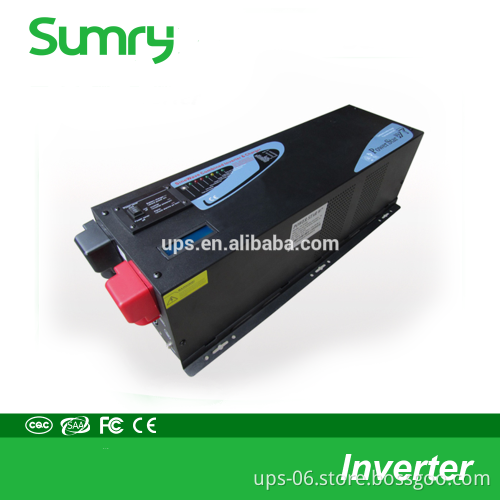

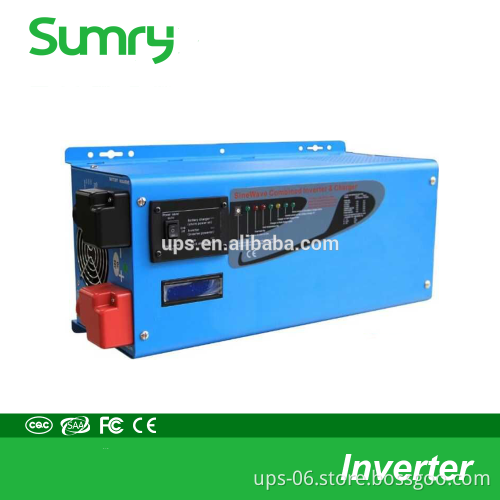

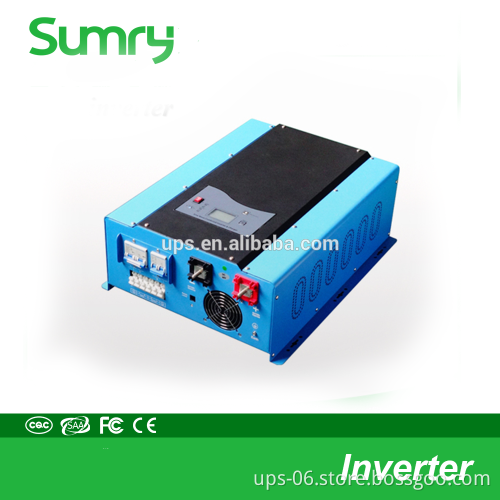

  Power Star W7 Inverter Different Angle Show : Packaging & Shipping  Packing details:

Model	N.W.	G.W.	Packing Size
PSW7 1000W	14kg	17kg	59.8*34*32.5cm
PSW7 2000W	19kg	22kg	59.8*34*32.5cm
PSW7 3000W	23kg	26kg	59.8*34*32.5cm
PSW7 4000W	35kg	38kg	77.5*34*32.5cm
PSW7 5000W	44kg	48kg	77.5*34*32.5cm
PSW7 6000W	44kg	48kg	77.5*34*32.5 cm
PSW7 8000W	56kg	86kg	68*54*37 cm
PSW7 10000W	63kg	94kg	79*58*39 cm
PSW7 12000W	68kg	100kg	79*58*39cm

Delivery time:

Sample Lead time:	5 days
Production lead time:	20days  (subject to the actual quantity)

  Company Information   FAQ   Q1: How to choose a right inverter? A1:Tell us your requirements, then our sales will recommend a suitable inverter to you.   Q2: What's the different between inverter and solar inverter? A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it saves the electricity and saves your money.     Q3: How about the delivery time? A3:  7 days for sample; 25 days for bulk order. If your order is urgent, tell us, we will try to meet your requirements.   Q4: What is the warranty of inverter? A4: One year warranty on Must-Solar product, when problem confirmed, we offer free parts to repair.   Q5: How to solve the technical problem? A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.       Why not press the blow "SEND" button to send us an email about your detail requirements? Or add our Whatsapp:+8618898727546   Some other Hot Selling Solar Inverter From Sunray Power:
