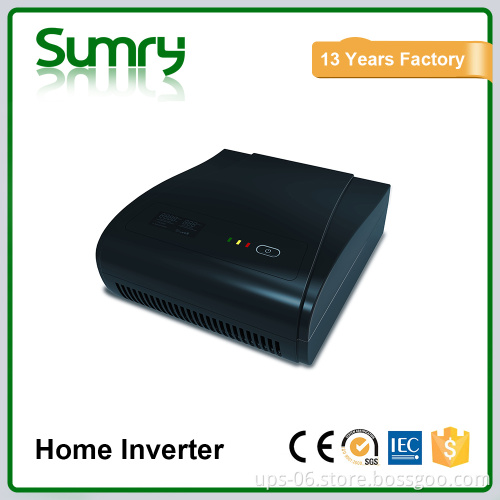

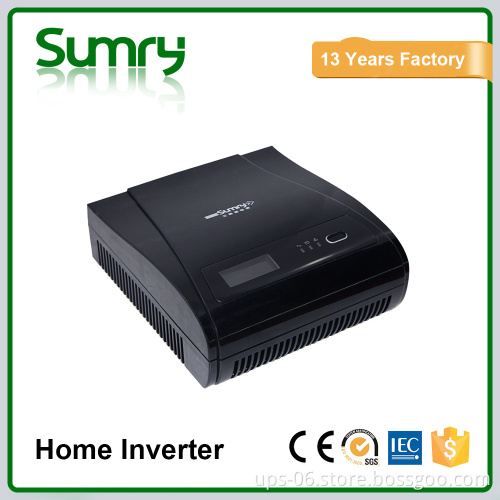

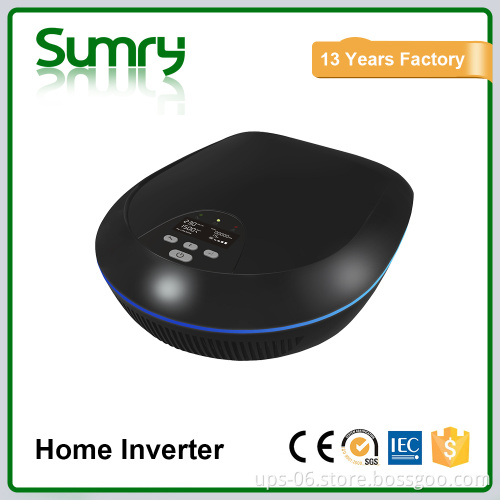

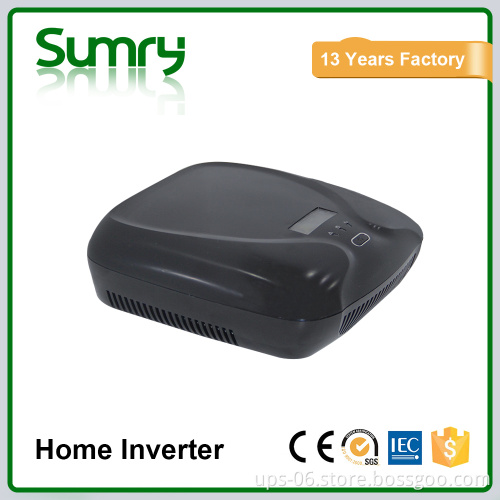

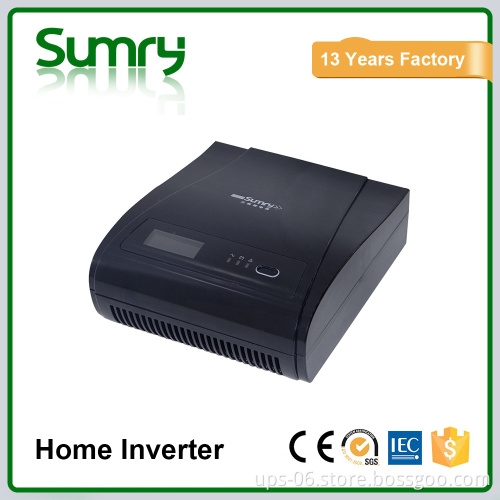

New design Home UPS/Inverter with LCD display

New design Home UPS/Inverter with LCD display

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

New home UPS/Home Inverter/UPS with LCD display1000VA-2000VA for Pakistan, charging current 10Amp and 20Amp manual select Applications: PCs, small-office-home-office (SOHO) equipment, NT workstations, and small internet-working devices, home appliance like TV, Fan, Radio, Tube Light etc. Features: 1. Modiified sine wave output 2. Electricity - Battery automatic conversion
3. Different choice of input voltage range
4. High-frequency digital technology, MCU control, more stable capablity
5. High efficiecy rate of DC - AC conversion, minimize energy loss 6. 10A/20A charge current manual select 7. Battery polarity protection 8. Different front panels to choose
9. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
10.Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
11. Ultra-load protection
12. Restoration of electricity, automatically activated
13. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery) TECHNICAL SPECIFICATIONS for home UPS/home inverter with LCD display1000VA-2000VA for Pakistan :

Product Series

Model

PG500

PG1000A

PG1000B

PG2000

Rated Power

300W

600W

1200W

Input

Nominal Voltage

110 / 120VAC or 220 / 230 / 240VAC

Voltage Range

90 - 145VAC or 170-280VAC ( Narrow Range )

50-145VAC / 90-280VAC (Wide Range)

output

Voltage(battery mode)

120VAC or 230VAC

Frequency

50Hz ±0.1Hz

Wave form

Modified sine wave

Power factor(AC to AC)

>95%

Power factor(DC to AC)

>80%

Battery

Type

Sealed Lead-Acid, Maintenance-free

Normal Voltage

12VDC

24VDC

12VDC

24VDC

Charger Current

8 Amp + / - 1Amp

6 Amp + / - 1Amp

10 Amp + / - 1Amp

Switch time 8ms(NARROW) LED indicators Utility mode Green light Battery mode Yellow light Over-load/fault Red light Audible alarm Low Voltage(battery mode) Beeping sound every two seconds. Over-load Beeping sound twice every second Fault Continuous beeping sound Conduction/RFI GB7260.2/EN50091-2CLASS A Environmental Operating Temperature 0 ~ 40 Relative Humidity 0% ~ 90% non-condensing Measurement Dimensions(L*W*H)(mm) 260*224*80 Weight(kg) 1.7 1.9 2.0 2.5
