7KW hybrid solar inverter with widely use

 7KW hybrid Solar Inverter with widely use     Product Description   Main Features:   1) High accuracy and reliability due to the double DSP control system;   2) Working state of  UPS  is displayed clearly on the 5.5 inch LCD screen;   3) Designed for industry to make sure the UPS work well under the bad circumstances;   4) With isolated transformer output and can drive the load of motor series directly;   5) Make sure the reliability and safety of the load and system due to the full protective function;   6)  Cold-startup directly and smart operation for users;Advanced  network  monitor function and support  various of operator system.   Specifications

	Model	7000W	8000W	10000W	12000W
Input	Rated capacity(W)	7000W	8000W	10000W	12000W
	Commercial Power range(VAC)	100/110/120/127/220/230(+25%,-35%)
	Frequency(Hz)	60/50±10%
Output	AVR voltage range(VAC)	100/110/120/127/220/230±10%(Auto-sensing)
	Transfer time	<15ms
	Waveform	(sine)
	Frequency	Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
protection	overload	Input/output over high or low protecting; low battery protecting; surge and pike-currents protecting;  overload protecting 100%-120% 30sec; >120% 100ms; >150%, 50ms output short circuit <150ms
Battery	DC Voltage	96/192VDC
	TYPE	Sealed, maintenance-free lead acid
	Recharge current	20A(Maximum)
	Battery protection	Automatic self-test, discharge protection, over-charging protected, smart management system.
Appearance	External Size(mm)   D×W×H	660*280*690
	Size(mm)                             D×W×H	760*380*900(1piece)
Net weight(kg)		90	95	110	120
Gross weight(kg)		95	100	120	130

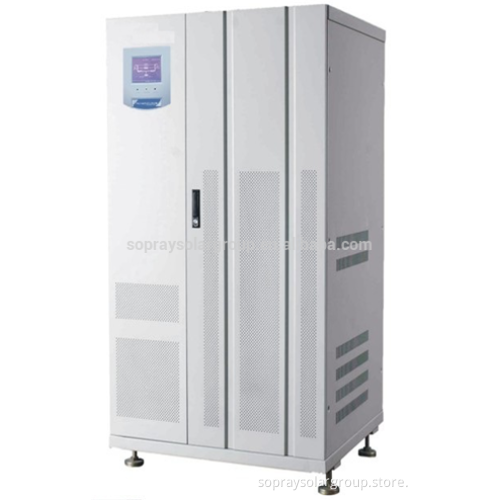

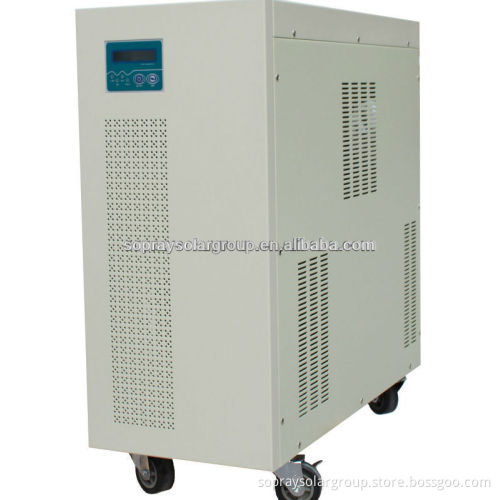

    Photos: 7KW hybrid Solar Inverter     Company Information         SOPRAY SOLAR GROUP LIMITED( SR-SOLAR brand) is a vertically integrated manufacturer of solar panel ,solar power station and solar street light . Almost 90% products are being exported to Southeast Asia, the Middle East, north and South America, parts of Europe and Africa.       In order to keep our high quality and competitive advantages on the international market, we have a strict quality control system, which complies with the ISO, CE, MCS, UL, IEC and TUV international standards for every step of the production process.       We are always customer-oriented, with a flexible and fast after-sales service, offering to customers best quality products and sustainable support as a reliable partner for establishing a long-term win-win business relationships with all interested partners.        The whole team of SOPRAY SOLAR GROUP is doing every day its best for improving the global environment, as our sincerest commitment, based on the high technology, to support the solar and wind energy as a clean, renewable and low-cost energy solution for the future world. SOPRAY SOLAR GROUP is committed to promote the innovative green energy, and we are warmly inviting the interested partners all over the world to create with us a better living environment for the future generations!   Our Services * Reply your inquiry in 24 working hours   * Customized design is available, OEM is welcomed   * After-service always timely   * Solar panel:12 years 90% warranty power output, 25 years warranty for 80% power output   * Replacement of any defective products in the warranty without any charge   Principle: To the same product, better price provided;                    To the same price, better quality provided;                    To the same quality, then better service provided.   Please contact me for more details!  :-)
