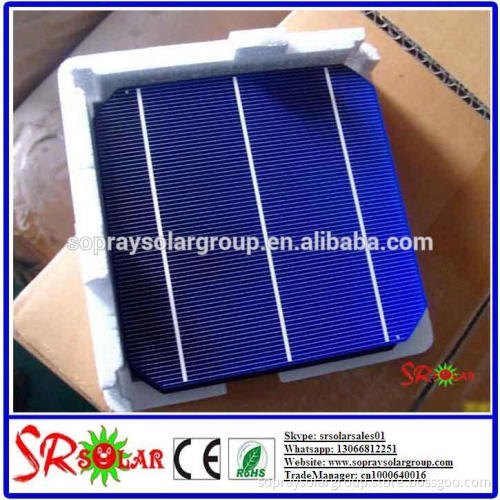

high efficiency 6 inch mono solar cell 3BB

Product Description high efficiency 6 inch mono solar cell 3BB       156x156mm (6x6 inch) monocrystalline solar cell,2 bus bar,3 bus bar   Dimension:         156mm x 156mm Front:                  Blue silicon nitride anti-reflection coating                             2.0mm silver busbars Back:                  Full-surface aluminum back-surface field                            4.0mm (silver / aluminum) continuous soldering pads   Features   1.High conversion efficiencies resulting in superior power output performance. 2.Outstanding power output even in low light or high temperature conditions 3.Optimized design for ease of soldering and lamination 4.Long-term stability,reliability and performance  5.Low breakage rate 6.Color uniformaity      Production and Quality Control   1.Precision cell efficiency sorting procedures 2.Stringent criteria for color uniformity and appearance 3.Reverse current and shunt resistance screening 4. ISO9001,ISO14001 and OHSAS 18001 etc. Certificated

SR156 *156 Poly-Crystalline
NO.	Class	Eff. %	Pmax (W)	Vpm(mV)	Ipm (A)	Area (cm2)
SRC-4.186-H	AA	EFF≥17.20%	Pmax ≥4.186	527±3	Ipm >8.120	243.34±2
SRC-4.186-M	AA	EFF≥17.20%	Pmax ≥4.186	527±3	8.040<Ipm<8.120	243.34±2
SRC-4.186-L	AA	EFF≥17.20%	Pmax ≥4.186	527±3	Ipm <8.040	243.34±2
SRC-4.137-H	AA	17.20%>EFF≥17.00%	4.186>Pmax ≥4.137	524±3	Ipm >8.070	243.34±2
SRC-4.137-M	AA	17.20%>EFF≥17.00%	4.186>Pmax ≥4.137	524±3	7.990<Ipm<8.070	243.34±2
SRC-4.137-H	AA	17.20%>EFF≥17.00%	4.186>Pmax ≥4.137	524±3	Ipm <7.990	243.34±2
SRC-4.088-H	AA	17.00%>EFF≥16.80%	4.137>Pmax ≥4.088	522±3	Ipm >8.020	243.34±2
SRC-4.088-M	AA	17.00%>EFF≥16.80%	4.137>Pmax ≥4.088	522±3	7.940<Ipm<8.020	243.34±2
SRC-4.088-L	AA	17.00%>EFF≥16.80%	4.137>Pmax ≥4.088	522±3	Ipm <7.940	243.34±2
SRC-4.040-H	AA	16.80%>EFF≥16.60%	4.088>Pmax ≥4.040	519±3	Ipm >7.960	243.34±2
SRC-4.040-M	AA	16.80%>EFF≥16.60%	4.088>Pmax ≥4.040	519±3	7.880<Ipm<7.960	243.34±2
SRC-4.040-L	AA	16.80%>EFF≥16.60%	4.088>Pmax ≥4.040	519±3	Ipm <7.880	243.34±2
SRC-3.991-H	AA	16.60%>EFF≥16.40%	4.040>Pmax ≥3.991	516±3	Ipm >7.900	243.34±2
SRC-3.991-M	AA	16.60%>EFF≥16.40%	4.040>Pmax ≥3.991	516±3	7.820<Ipm<7.900	243.34±2
SRC-3.991-L	AA	16.60%>EFF≥16.40%	4.040>Pmax ≥3.991	516±3	Ipm <7.820	243.34±2
SRC-3.942-H	AA	16.40%>EFF≥16.20%	3.991>Pmax ≥3.942	513±3	Ipm >7.840	243.34±2
SRC-3.942-M	AA	16.40%>EFF≥16.20%	3.991>Pmax ≥3.942	513±3	7.760<Ipm<7.840	243.34±2
SRC-3.942-L	AA	16.40%>EFF≥16.20%	3.991>Pmax ≥3.942	513±3	Ipm <7.760	243.34±2

  Pictures:       Company Information   SOPRAY SOLAR GROUP LIMITED( SR-SOLAR brand) is a vertically integrated manufacturer of solar panel ,solar power station and solar street light . Almost 90% products are being exported to Southeast Asia, the Middle East, north and South America, parts of Europe and Africa. In order to keep our high quality and competitive advantages on the international market, we have a strict quality control system, which complies with the ISO, CE, MCS, UL, IEC and TUV international standards for every step of the production process.  Our Services   Our principle: To the same product, better price provided; To the same price, better quality provided; To the same quality, then better service provided.   Please contact us, we will guide you step-by-step about choosing the product according to your needs to deliver you the best quality product on very affordable installment rates.   Welcome to visit our factory at any time. Skype: srsolarsales01
TradeManager: cn1000640016
Address: 191 # Hua ting Road, Da lang Street, Longhua Town, Baoan District, Shenzhen City, China
