3000w 4000w 5000w 6000w dc to ac pure sine wave inverter

Product Description   3000w 4000w 5000w 6000w dc to ac pure sine wave inverter       1.Features   High Transform efficiency, fast start; Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability;
With automatic over-current and output short circuit protection to avoid damage the equippment; Reliable with built in fuse;   2. Details

Model : TY-5000-S		TY-5000-S-12V	TY-5000-S-24V	TY-5000-S-48V
AC Output	Continuous power:	5000W
	Surge power:	10000W
		120%<Load<150% Rated power for 10s
		150%<Load<200% Rated power for 2s
	Output Waveform	Pure Sine Wave (THD < 3%)
	Output Frequency	50Hz±0.1% or 60Hz±0.1% (Optional)
	AC Output Voltage	100~120VAC / 200~240VAC (Optional)
DC Iutput	DC Input Voltage	12V DC	24V DC	48V DC
	Voltage Range	10V-15V	20V-30V	40V-60V
	Low Voltage Alarm	10.5V± 0.5V	21V±1V	42V±2V
	Low Voltage Shut down	10V±0.5V	20V±1V	40V±2V
	Over Voltage Shut down	15V±0.5V	30V±1V	60V±2V
Converting Max. Efficiency		90% (Full Loading) / 95% (1/3 Loading)
No Load Consumption		< 1.2 A	< 0.6A	< 0.3A
Protection	Over Thermal:	Shut Off Output Automatically, Temperature >75℃
	Short circuit protection:	Reverse Polarity (External Fuse)
	Cooling Fan automatically run	Temperature ≥45℃
Environment	Working temperature	-10℃~+50℃
	Working humidity	20%~90% RH  Non-Condensing
	Storage Temperature Range	-30℃~+70℃

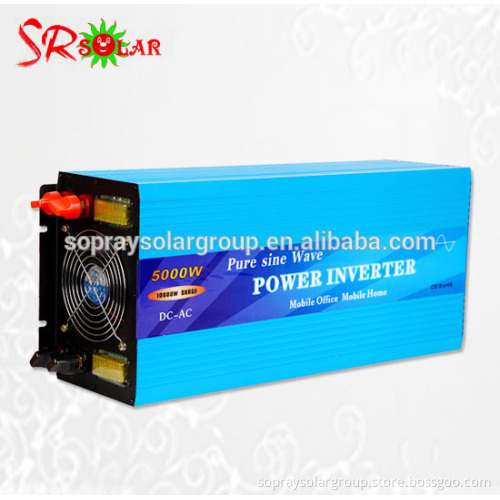

      3. Pictures of our products:     Packaging & Shipping

Model : TY-5000-S		TY-5000-S-12V	TY-5000-S-24V	TY-5000-S-48V
LED Indicator Light		Inverter, Fault
Packing	Inner Box Dimensions (mm)	645*320*220 mm		1pcs /Carton
	Inner Box Weight (kg)	14 kg
	Carton Dimensions (mm)	670*340*240 mm
	Carton Weight (kg)	15 kg

  Our Services   * Reply your inquiry in 24 working hours

* Customized design is available, OEM is welcomed

* After-service always timely

* Solar panel:12 years 90% warranty power output, 25 years warranty for 80% power output

* Replacement of any defective products in the warranty without any charge
