12v 300w family use off grid solar inverter industrial frequency dc to ac inverter

Product Description    12v 300w family use off grid solar inverter industrial frequency dc to ac  inverter       1.Main Features: 1).High transfer efficiency. Highest can reach 95%.  2).Output Pure sine wave . 3).Protected functions are covered completely: output short-circuit protection( take load short-circuit), overload protaction, DC overload and under-voltage protection. 4).Strong ability of resisted concussion makes sure of loading all kinds of electric apparatus and industry equipments such as: air condition, refrigerator, television, fan, washer, fill water electric motor, tortile gate and etc.  5).The service life is long and can reach a decade.   2. Details of 300W off grid inverter:

Rated capacity(W)

300W

600W

1000W

1200W

1500W

1800W

2000W

3000W

4000W

5000W

6000W

7500W

10000W

Input

Commercial Power range       (VAC)

100/110/120/127/220/230(+25%,-35%)

100/110/120/127/220/230(±20%)

Frequency (Hz)

60/50±10%

Output

AVR voltage  range(VAC)

100/110/120/127/220/230±10%(Auto-sensing)

(No)

Transfer time

Typical:5ms(Including detection time)

Battery

DC Voltage

12VDC

12/24VDC

24VDC

24/48VDC

48VCD

96/192VCD

Output

Waveform

Pure sine wave

Frequency(Hz)

Commercial power supply: shared frequency  with the commercial inversion state:60/50±0.5

Protection

Overload

IPS automatically shut down if overload exceeds  120% of normal value for 10 seconds, IPS automatically resume work  if overload comes to rated load.

Battery

Type

Sealed, maintenance-free lead acid

Recharge current

15A(Maximum)

Battery protection

Automatic self-test, discharge protection,  over-charge protection, smart management system.

Size

External Size(mm) D×W×H

375×130×190

452×192×338

500×262×455

570×260×750

Size(mm) D×W×H

495×490×320 (2 piece)

530×335×475 (1 piece)

545×345×535 (1 piece)

701×435×895(1piece)

Net weight(kg)

6.5

10

11

17

19

26.2

25.3

28.7

33

31/52

41/55

47/69

72

Gross weight(kg)

15.6

22.6

25

19.7

22

28.9

28.7

32.6

35.7

45/66

55/69

61/83

81

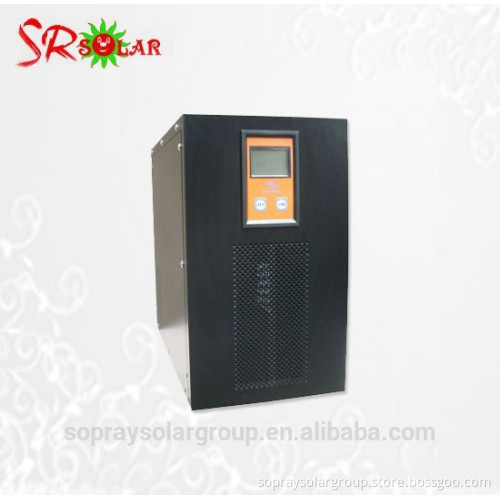

      3. Pictures of our products:       Company Information     Our Services   * Reply your inquiry in 24 working hours

* Customized design is available, OEM is welcomed

* After-service always timely

* Solar panel:12 years 90% warranty power output, 25 years warranty for 80% power output

* Replacement of any defective products in the warranty without any charge
