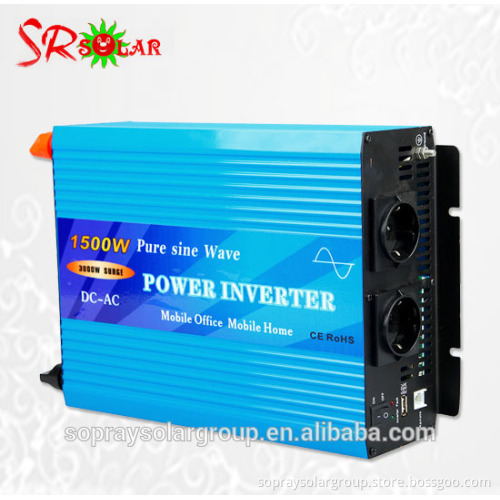

Top quality 12v 24v 48v 1500W dc to ac solar power inverter

Product Description   Top quality 1500W 12v 24v 48v pure sine wave power inverter, solar inverter      1.Features of 1500W TY-S series Pure Sine Wave Inverter:   High Transform efficiency, fast start; Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability;
With automatic over-current and output short circuit protection to avoid damage the equippment; Reliable with built in fuse;   2. Details of 1500W TY-S series Pure Sine Wave Inverter:

Model : TY-1500-S		TY-1500-S-12V	TY-1500-S-24V	TY-1500-S-48V
AC Output	Continuous power:	1500W
	Surge power:	3000W
		120%<Load<150% Rated power for 10s
		150%<Load<200% Rated power for 2s
	Output Waveform	Pure Sine Wave (THD < 3%)
	Output Frequency	50Hz±0.1% or 60Hz±0.1% (Optional)
	AC Output Voltage	100~120VAC / 200~240VAC (Optional)
DC Iutput	DC Input Voltage	12V DC	24V DC	48V DC
	Voltage Range	10V-15V	20V-30V	40V-60V
	Low Voltage Alarm	10.5V± 0.5V	21V±1V	42V±2V
	Low Voltage Shut down	10V±0.5V	20V±1V	40V±2V
	Over Voltage Shut down	15V±0.5V	30V±1V	60V±2V
Converting Max. Efficiency		90% (Full Loading) / 95% (1/3 Loading)
No Load Consumption		< 0.8A	< 0.4A	< 0.2A
Protection	Over Thermal:	Shut Off Output Automatically, Temperature >75℃
	Short circuit protection:	Reverse Polarity (External Fuse)
	Cooling Fan automatically run	Temperature ≥45℃
Environment	Working temperature	-10℃~+50℃
	Working humidity	20%~90% RH  Non-Condensing
	Storage Temperature Range	-30℃~+70℃

  3. Pictures of our products:     Packaging & Shipping

Model : TY-1500-S		TY-1500-S-12V	TY-1500-S-24V	TY-1500-S-48V
LED Indicator Light		Inverter, Fault
Packing	Inner Box Dimensions (mm)	405*286*168 mm		2pcs /Carton
	Inner Box Weight (kg)	5.5 kg
	Carton Dimensions (mm)	430*305*355 mm
	Carton Weight (kg)	12 kg
