1000w pure sine wave inverter/solar inverter with built-in charger

Product Description   1000w pure sine wave inverter, solar inverter with charger     1.Features of 1000W pure sine wave inverter:   High Transform efficiency, fast start; Pure sine wave output waveform;
Softstart function;
Strong adaptability and stability;
With automatic over-current and output short circuit protection to avoid damage the equippment; Reliable with built in fuse;   2. Details about 1000w pure sine wave inverter:

Model : TYPC-1000		TYPC-1000-12V	TYPC-1000-24V	TYPC-1000-48V
AC Output	Continuous power:	1000W
	Surge power:	2000W
		120%<Load<150% Rated power for 10s
		150%<Load<200% Rated power for 2s
	Output Waveform	Pure Sine Wave (THD < 3%)
	Output Frequency	50Hz±0.1% or 60Hz±0.1% (Optional)
	AC Output Voltage	100~120VAC / 200~240VAC (Optional)
DC Iutput	DC Input Voltage	12V DC	24V DC	48V DC
	Voltage Range	10V-15V	20V-30V	40V-60V
	Low Voltage Alarm	10.5V± 0.5V	21V±1V	42V±2V
	Low Voltage Shut down	10V±0.5V	20V±1V	40V±2V
	Over Voltage Shut down	15V±0.5V	30V±1V	60V±2V
Charger Spec.	AC Input voltage	AC 100V-120V±10%
		AC 220V-240V±10%
	DC Charging Voltage	12V	24V	48V
	DC Charging Current	10A	5A	3A
	Three-stage Charging	Bulk/Absorption/Float charge
	Automatically Switching Time	≤40ms
Converting Max. Efficiency		90% (Full Loading) / 95% (1/3 Loading)
No Load Consumption		< 0.5A	< 0.25A	< 0.13A
Protection	Over Thermal:	Shut Off Output Automatically, Temperature >75℃
	Short circuit protection:	Reverse Polarity (External Fuse)
	Cooling Fan automatically run	Temperature ≥45℃
Environment	Working temperature	-10℃~+50℃
	Working humidity	20%~90% RH  Non-Condensing
	Storage Temperature Range	-30℃~+70℃

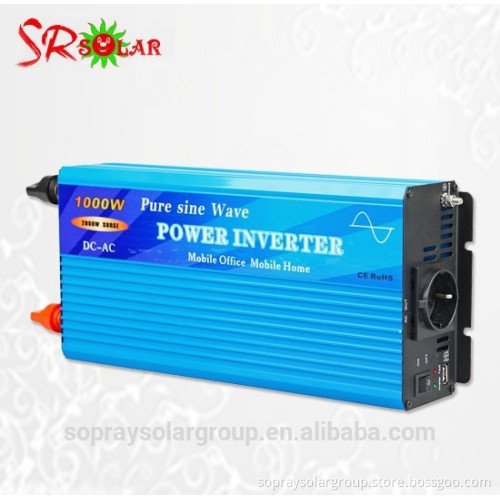

  3. Pictures of our products:   Packaging & Shipping

Model : TYPC-1000		TYPC-1000-12V	TYPC-1000-24V	TYPC-1000-48V
LED Indicator Light		Inverter, Fault
Packing	Inner Box Dimensions (mm)	515*195*137 mm		4pcs /Carton
	Inner Box Weight (kg)	5.5 kg
	Carton Dimensions (mm)	540*420*300 mm
	Carton Weight (kg)	23 kg

  Company Information     Our Services   * Reply your inquiry in 24 working hours

* Customized design is available, OEM is welcomed

* After-service always timely

* Replacement of any defective products in the warranty without any charge
