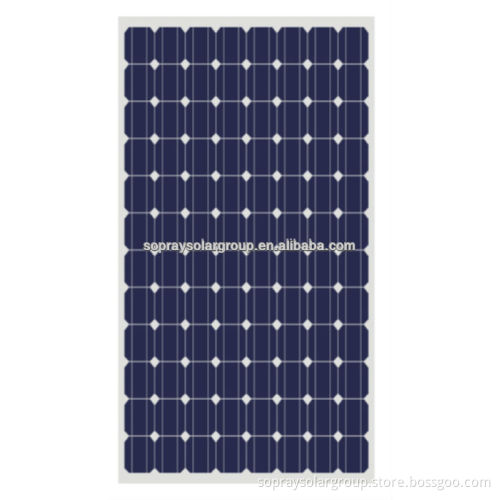

high efficency widely used Mono panel 250W

             Mono  200-250W Solar panel with high effeciency   Product Description  Features:      Detail Specifications:

Number of cells (Pcs)	60(6*10)
Size of cell (mm)	156*156
Size of module (mm)	1650×992×46mm
Maximum system voltage (V)	1000V
Temperature coefficients of Isc (%)	+ 0.1/ °C
Temperature coefficients of Voc (%)	-0.38/ °C
Temperature coefficients of Pm (%)	-0.47/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	`-40C------+85C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	19.5
Junction Box Type	PV-JB001( TUV )
Connectors and Cables Type	With TUV certificate
Length of Cables (mm)	900mm
Output tolerance (%)	-0/+3%
Frame (Material, Corners, etc.)	Aluminum
Standard Test Conditions	1000W/m2 AM1.5 25’C
Warranty	5 years product warranty and 25years 80% of power
FF (%)	≥72%
Quantity of one 20ft container	228PCS
Quantity of one 40ft HQ container	532PCS

  Photos: Company Information            Sopray solar Group Ltd. located in Shenzhen city of Guangdong Province.  SR solar is a vertically integrated manufacturer of solar PV modules and solar power station. Our company are speacialized in solar panel / solar controller / solar battery / solar inveter / solar system  / solar products( LED light, street light, solar fans..etc.) for many years with  good qulity and competetive price. Welcome to visit our factory! Our Services  * Reply your inquiry in 24 working hours * Customized design is available, OEM is welcomed   * After-service always timely   * 12 years 90% warranty power output, 25 years warranty for 80% power output   * Replacement of any defective products in the warranty without any charge   Disclaimer Dismantling and modifying without permission are prohibited.  Our company takes no responsibility for any intentional damage or any damage resulting from  the above-mentioned prohibited behavior and improper use.   Please contact me for more details!  :-)    Skype: srsolar03    Address: 204 # Hua rong Road, Da lang Street, Longhua Town, Baoan District, Shenzhen City, China
