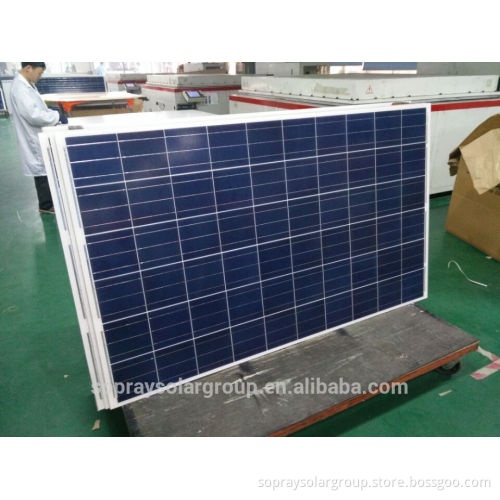

prue color 250W sopray poly PV Solar panel module with complete certificate

  240-270W poly Solar panel    Product Description Features of solar panel   Specification

Electrical Characteristics
Characteristics	SR156P- 240	SR156P-250	SR156P-260	SR156P-265	SR156P-270
Maximum power at STC (Pmax)	240Wp	250Wp	260Wp	265Wp	270Wp
Open-Circuit Voltage(Voc)	37.5V	38V	38.5V	38.8V	39.7V
Optimum Operating Voltage(Vmp)	30.6V	31.2V	31.8V	32.2V	32.7V
Short-Circuit Current (Isc)	8.38A	8.65A	8.91A	9.15A	9.15A
Optimum Operating  Current(Imp)	7.84A	8.02A	8.17A	8.23A	8.26A
Module Efficiency	15.80%	16.50%	17.10%	17.40%	17.80%
Solar Cell Eficiency	16.50%	17.25%	17.75%	18.00%	18.50%
Operating Temperature	-40°C to + 85°C
Maximum System Voltage	1000V DC
Seriec Fuse Rating	16A
Power Tolerance	±1.5%
STC : Irradiance 1000W/m² , Module temperature 25°C,AM=1.5
Mechanical Characteristics
Solar cell	Poly -crystalline 156×156mm (6inch)
No.of cells	60(6×10)
Dimensions	1640×992×40mm
Weight	20kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	PV-RH701 (TUV)
Temperature Coefficents
Temperature Coefficents
Temperature Coefficents
Nominal Operating Cell Temperature (NOCT)                        45±2°C
Temperature Coefficent of Pmax                            -(0.47±0.05)%/°C
Temperature Coefficent of Voc                               -(0.34±0.01)%/°C
Temperature Coefficent of Isc                               -(0.055±0.01)%/°C
WARRANTY
Manufacturing		10years
Power production		90% =12 years
80% =25 years

  Photo show   Company Information           SOPRAY SOLAR GROUP LIMITED( SR-SOLAR brand) is a vertically integrated manufacturer of solar panel ,solar power station and solar street light . Almost 90% products are being exported to Southeast Asia, the Middle East, north and South America, parts of Europe and Africa.       In order to keep our high quality and competitive advantages on the international market, we have a strict quality control system, which complies with the ISO, CE, MCS, UL, IEC and TUV international standards for every step of the production process.      We are always customer-oriented, with a flexible and fast after-sales service, offering to customers best quality products and sustainable support as a reliable partner for establishing a long-term win-win business relationships with all interested partners.       The whole team of SOPRAY SOLAR GROUP is doing every day its best for improving the global environment, as our sincerest commitment, based on the high technology, to support the solar and wind energy as a clean, renewable and low-cost energy solution for the future world. SOPRAY SOLAR GROUP is committed to promote the innovative green energy, and we are warmly inviting the interested partners all over the world to create with us a better living environment for the future generations!   Our Services  * Reply your inquiry in 24 working hours   * Customized design is available, OEM is welcomed   * After-service always timely   * Solar panel:12 years 90% warranty power output, 25 years warranty for 80% power output   * Replacement of any defective products in the warranty without any charge   Principle: To the same product, better price provided;                    To the same price, better quality provided;                    To the same quality, then better service provided.   Please contact me for more details!   Skype: srsolar03
