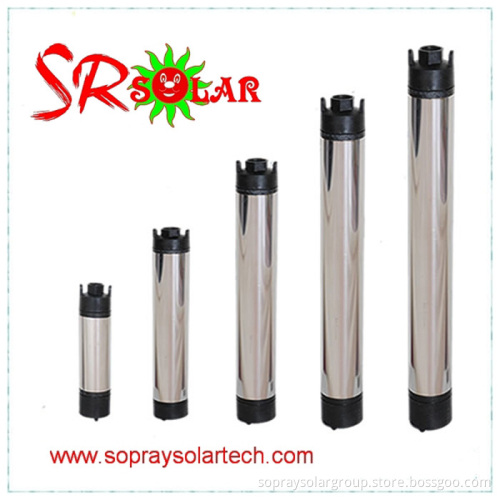

high quality deep well submersible pump/ solar agriculture water pump system

Product Description high quality deep well submersible pump/ solar agriculture r water pump system       Applications:
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Operating conditions:
Maximum fluid temperature up to +35°C.
Maximum sand content: 0.3%.
Maximum immersion: 100m.
Minimum well diameter: 27mm.    Pump's Material:
1,Pump external casing:AISI304ss
2,Delivery casing: Cast-Cu ASTM280 or AISI304ss
3,Suction lantern: Cast-Cu ASTM280 or AISI304ss
4,Diffuser: Plastic.PC
5,Impeller : Plastic.POM
6,Shaft : AISI316ss or AISI304ss
7,Shaft coupling: AISI316ss or AISI304ss
8,Wear ring: AISI304ss
9,Motor external casing: AISI304ss
10,Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11,Bottom support: AISI304ss
12,Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13,Shaft: AISI304ss-C1045   Specifications: plug-type cable plug with both internal and external single-phase capacitance three-phase without control box high performance for agricultural use  Deep well pump/ "Little Mouse" 150QJ(Large flow series)

Model	Rated  flow  (m³/h)	Rated  lift(m)	Maximum flow   (m³/h)	Maximum  lift(m)	Rated  voltage(V)	Rated  power(KW)	Impeller series	caliber (inch)
150QJ0520	5	20	10	26.5	220	0.55	2	1.2"
150QJ0530	5	30	10	37.4	220	0.75	3	1.2"
150QJ0540	5	40	10	49.2	220	1.1	4	1.2"
150QJ0830	8	30	13	42	220	1.1	3	1.5"
150QJ0840	8	40	13	52	220	1.5	4	1.5"
150QJ0520T	5	20	10	26.5	380	0.55	2	1.2"
150QJ0530T	5	30	10	37.4	380	0.75	3	1.2"
150QJ0830T	8	30	13	42	380	1.1	3	1.5"
150QJ0840T	8	40	13	52	380	1.5	4	1.5"
