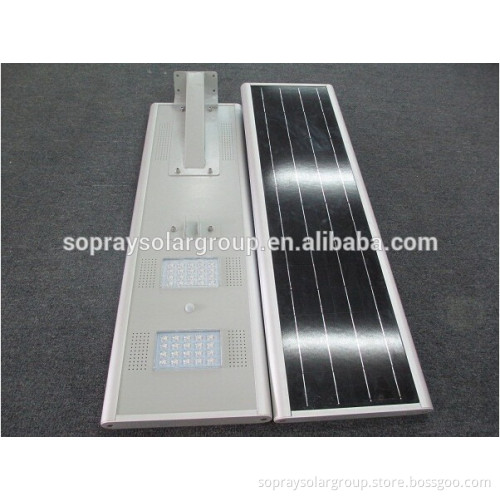

New design LED solar street light integrated solar street light with motion sensor

New design LED solar street light integrated solar street light with motion sensor   specification information below:

Model:	CSSTY-208(With Sensor)					Mounting height(m):	3-4m
Solar panel Max power:	18V15W (high efficiency imported silicon solar cell)					Space between light(m):	8-10m
Solar panel Life time:	25 years					Lamps material of main:	aluminium alloy
Battery Type:	lithium battery(Life time 5 years)					Certificate:	ISO/CE / ROHS / IP65
LED Max power:	12V 8W					Warranty period:	2years
Led chip brand:	Epistar from Taiwan with high brightness					Unit size:	515*320*52mm
Lumen (LM):	800-880lm					N.W:	5.5kg
LED Life time:	50000hours					Inner box:	560*400*150mm
Lighting Viewing Angle:	120°					Carton size:	560*400*150mm
Charge time(by sun):	6-7hours (with enough strong shine)					Q'ty/ctn:	1sets/ctn
Discharge time:	more than 20 hours (saving mode)					GW.for carton:	6.5kg
Working TEMP( ℃ )	-20~+60					20GP container:	800pcs
CCT (k):	6500k-7000k					40GP container:	1600pcs

    About integrated solar street light advantage:   The design of the all in one solar street light comes from the inspiration and power of the universe, combined the best energy saving parts---solar panel, led lamp and special battery. With the help of the controller and PIR sensor, it realizes the functions of high brightness with low energy, long lifespan and free maintenance. At the same time, it is very convenient to ship and install. It is one of the best patent products of our company.    Installing Directions:   1.To place the light pole into the best spot with good day lighting . The light pole should be the length 3-5m, the thickness 2.0mm with material iron or steel, the diameter 40-100mm.   2.Please check if the components are all here when open the packing, the components are show below.   3.Please turn on the switch before using.   4.Place the lamp on the pole by its sleeve,and make sure it is steady,then it is OK.       Pictures:     If any question,pls contact us freely My skype is srsolar04,and my trademanager is cn1500136335
