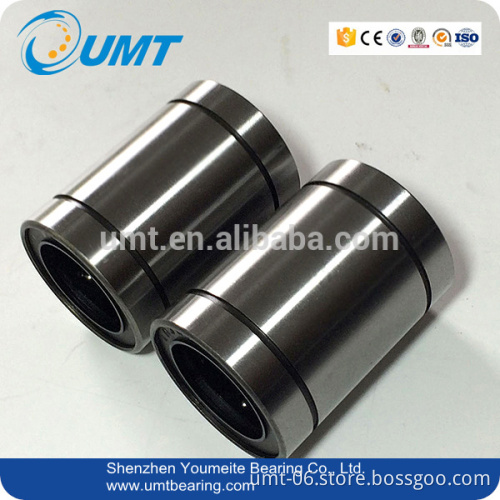

Linear bearing LM8UU 3D printer linear motion bearing

What is linear bearing? Linear motion bearings have the characterized of smooth movement,low friction,high rigidity and long life span,economical and easy to maintain or replace, our top mission is 100% quality control and 100% customer satisfied.  we are responsible to assist our customer to be competitive and advantaged in the marke Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings or linear roller bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.   Characteristics of  bearing linear LM8UU  1.Linear bearings enble high precision linear motion on round shaft by ulitizing recirculating ball pathways. 2.The patened recirculation curve enbles CLUNT's linear bearing to sustain heavy loads with low noise and high stiffness. 3.CLUNT's diverse line of linear bearings perform under almost under any environmental conditions and load conditions and capacities to satisfy a wide range of applications.      Linear bearing Application:         Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components       LM...UU series:LM4UU   LM5UU   LM6UU   LM8SUU   LM10UU LM12UU                    LM13UU   LM16UU   LM20UU   LM25UU   LM30UU   LM35UU                              LM40UU   LM50UU   LM60UU   LM80UU   LM100UU;     LMB...UU series:LMB3UU   LMB4UU   LMB6UU   LMB8UU   LMB10UU                                LMB12UU   LMB16UU   LMB20UU   LMB24UU   LMB32UU                               LMB40UU   LMB48UU   LM64UU;     LME...UU series:LME4UU   LME5UU   LME8UU   LME10UU   LME12UU                                LME16UU   LME20UU   LME25UU   LME30UU   LME40UU                               LME50UU   LME60UU   LME80UU;     LM...LUU series:LM6LUU   LM8LUU   LM10LUU   LM12LUU   LM13LUU                               LM16LUU   LM20LUU   LM25LUU   LM30LUU   LM35LUU                               LM40LUU   LM50LUU   LM60LUU;   LME...LUU series: LME8LUU   LME12UU   LME16LUU   LME20LUU   LME25LUU                               LME30LUU   LME40LUU   LME50LUU   LME60LUU;   LMF...UU series : LMF6UU    LMF8SUU   LMF8UU   LMF10UU   LMF12UU                               LMF13UU   LMF16UU   LMF20UU   LMF25UU   LMF30UU                             LMF35UU   LMF40UU   LMF50UU   LMF60UU;   LMK...UU series:LMK6UU   LMK8SUU   LMK10UU   LMK12UU   LMK13UU                              LMK16UU   LMK20UU   LMK25UU   LMK30UU   LMK35UU                              LMK40UU   LMK50UU   LMK60UU;   LMF...LUU series:LMF6LUU   LMF8LUU   LMF10LUU   LMF12LUU   LMF13LUU                               LMF16LUU   LMF20LUU   LMF25LUU   LMF30LUU                                LMF35LUU   LMF40LUU   LMF50LUU   LMF60LUU;   LMK...LUU series:LMK6LUU   LMK8LUU   LMK10LUU   LMK12LUU LMK13LUU  LMK16LUU   LMK20LUU   LMK25LUU   LMK30LUU  LMK35LUU   LMK40LUU   LMK50LUU   LMK60LUU;   LMH...UU series:  LMH6UU   LMH8UU   LMH10UU   LMH12UU   LMH13UU                              LMH16UU   LMH20UU   LMH30UU   LMH35UU;   LMH...LUU series:   LMH6LUU   LMH8LUU   LMH10LUU   LMH12LUU                                 LMH13LUU   LMH16LUU   LMH20LUU   LMH25LUU                                LMH30LUU;

KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP, KH2540PP,KH3050PP,KH4060PP,KH5070PP

Stell Cage Linear Bearing:  LM8GA,LM10GA,LM12GA,LM16GA,LM20GA, LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA

SDM series Steel cage linear bearing(As same as Ease SDM series):SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150

Linear Slide Unit: 1.Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type) SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type) 2.Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU(Long type) TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block)

Shaft Support: SK/SHF SHAFT



Model No.	Main dimensions			Basic load rating
	Inscribed bore diameter	Outer diameter	Length	Dynamic rating	Static rating
	dr	D	L	C	C0
	mm	mm	mm	N	N
LM 3	3	7	10	88.2	108
LM 4	4	8	12	88.2	127
LM 5	5	10	15	167	206
LM 6	6	12	19	206	265
LM 8S	8	15	17	176	225
LM 8	8	15	24	265	402
LM 10	10	19	29	373	549
LM 12	12	21	30	412	598
LM 13	13	23	32	510	775
LM 16	16	28	37	775	1180
LM 20	20	32	42	863	1370
LM 25	25	40	59	980	1570
LM 30	30	45	64	1570	2750
LM 35	35	52	70	1670	3140
LM 40	40	60	80	2160	4020
LM 50	50	80	100	3820	7940
LM 60	60	90	110	4700	10000
LM 80	80	120	140	7350	16000
LM 100	100	150	175	14100	34800
LM 120	120	180	200	16400	40000
LM 150	150	210	240	21100	54300

      SUPPORT:SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50,
