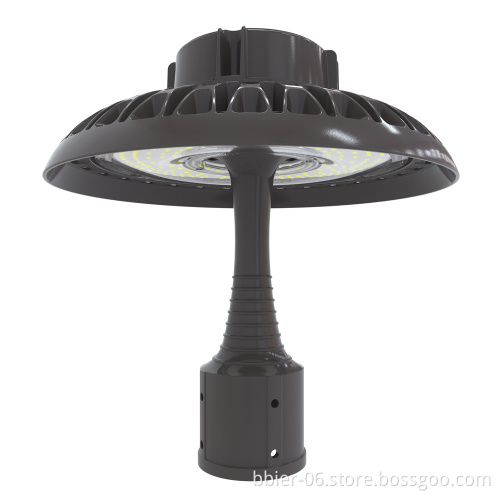

BBIER 150W LED Solar Post Top Mushroom Lights

Cheap price outdoor fixture ip65 led post top garden with pillar lights

PRODUCT DESCRIPTION

The area series has the high-performance solution for the most demanding applications within a unique design. With different precision refractive optical lens and an easy-install design,it can be used in many applications such as pedestrian street, factory, schools, garden, courtyard .hotel .parking lot.public parks etc.

FEATURES

1.Air cooling Design.
2.IP67 Rated Enclosure.
3.Post top or Pendant Mounting.
4.Superior Low-glare Illumination.
5.Optional with Photocell.
6.Optional beam angle 60° 90°130°.

lf the customer does not specify a requirement, the inner diameter defaults to 80mm(3.15in).

Notes:
1.130lm/w,150lm/w is optional.the default is 130lm/w.
2. Customers can choose a lamp with a baffle as needed. Special Ord er-Ask Customer Service.

PERFORMANCE DATA

PROJECTS
By using our 100W Area Light to replace 300W Metal Halide bulb for parking area lighting fixtures.the customer is now able to save a lot per month from his electric bill.

Notes:

1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.

LUMINOUS INTENSITY DISTRIBUTION

APPLICATION
1. Courtyard lighting
2. Public parks lighting
3. Street scapes lighting
4. Parking areas lighting
5. Hotel lighting

INSTALLATION
Fixture assembly
1.Feed the Housing wires through the tenon pole adaptor.
2.Secure the tenon pole adaptor to the lamp with four M4 screws.

3.Make sure the screws are tight and there is no looseness.

Pole mounting

1.Turn off the power before installation.

2.Wiring right in the wiring box("Black" is connected to "L","White connect to "N","Green" to "Ground") and set the lamp into the bracket by the hole.(picture 1).

3.We should fasten the four screws with a hex wrench,and finished(picture 2).
