China OEM Waterproof IP65 LED Garden Lights

China OEM Waterproof IP65 LED Garden Lights

$77.00/piece

Min. Order:: 2 piece

Min. Order:: 2 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

Benefits

1.Replace conventional area light.

2.Precision die cast aluminum housing.

3.Fade resistant powder coat finish.

4.Easy installation.

5.ETL CETL SAA TUV CE ROHS listed.

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

Features
1.Beam angle : 120 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It's major to replace the conventiona area light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

Application

1.Area roadway lighting.
2.Parking area lighting.
3.Airport lighting.
4.Street lighting.

5.Campus lighting.
5.Other application adaway.

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

Specifications

Power	30W	50W	75W	100W
Model	BB-LD-30W-AR-B	BB-LD-50W-AR-B	BB-LD-75W-AR-B	BB-LD-100W-AR-B
Replacement	HPS 100W	HPS 175W	HPS 200W	HPS 300W
Luminous Flux	3900lm	6500lm	9750lm	13000lm
Light Source	SMD LED
Luminous Efficacy	>130lm/w 150lm/w available
Voltage	100-277VAC/50-60HZ
CRI	85
Color	Black,bronze,white(the default color is black)
Cover	Frosted cover

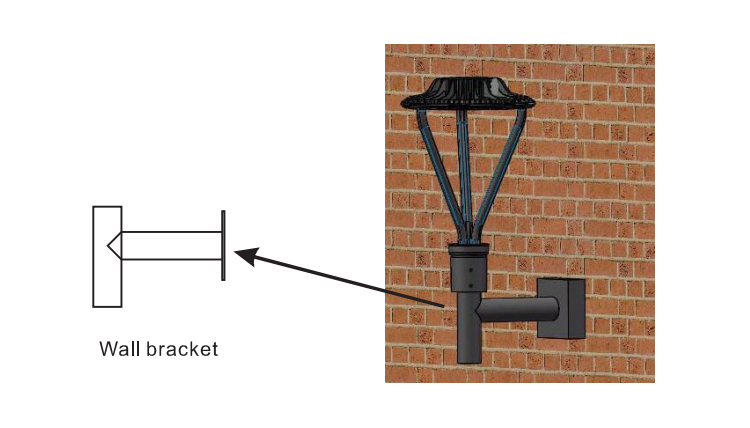

Accessories	Option:A.Pole bracket B.With sensor C.Wall bracket
DLC Certification	Type DLC listed
Operation Temp.	-40 to +45℃
CCT	2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
Life Span	50,000 hours at 25℃
Dimming	NO
Beam Angle	120°
PF	>0.95
IP	67
Warranty	5 Years

Dimensional Drawing

If the customer does not specify a requirement ,the inner diameter defaults to 62mm.

China BBIER OEM new 30w 50w 75w 100w waterproof ip65 yard courtyard lawn LED garden light outdoor lighting ce

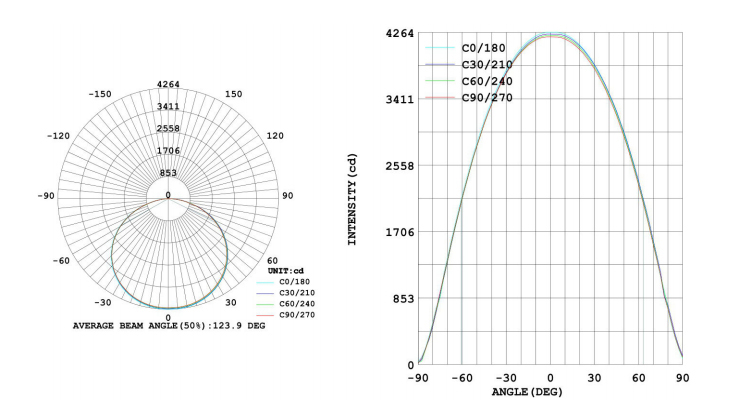

Luminous Intensity Distribution

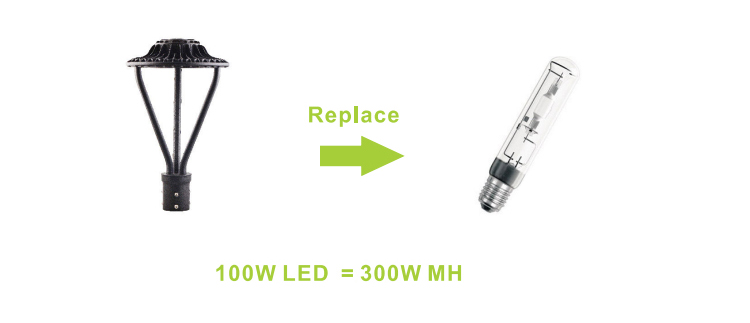

Projects

By using our 100w LED area light to replace 300w metal halide bulb for parking garage lighting lighting fixtures,the customer is now able to save a lot per month from his electric bill.

Note
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.

Installation

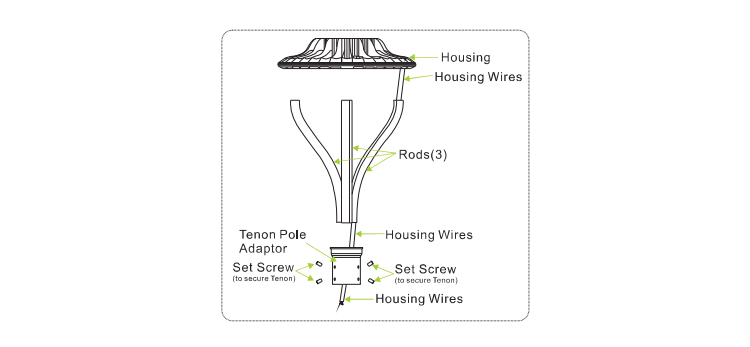

Fixture assembly

Step 1:Feed the (3)housing wires through one of the three rods.

Step 2:Clip the (3)rods onto the housing.Be sure the housing clips are properly engaed onto the rods.

Step 3:Feed fixture wiress through the tenon pole adaptor.

Step 4:Slide tenon pole adaptor on three rods.Be sure the notches face the inside of the tenon pole adaptor.

Step 5:Tighten the (3) set screws at the tenon pole adaptor to secure rods.

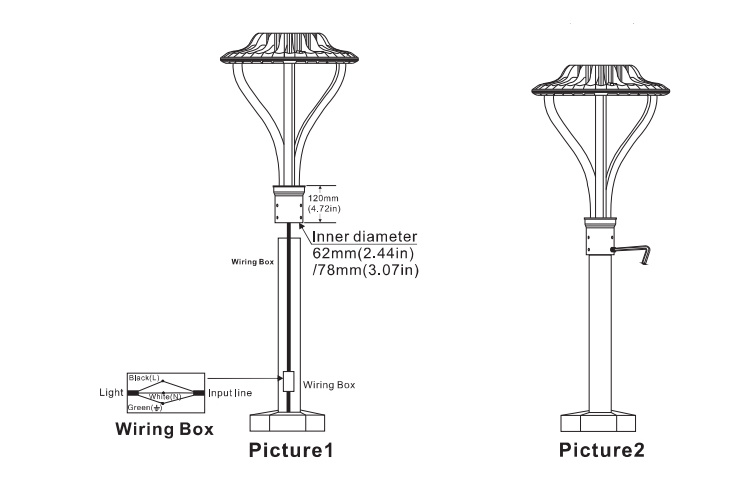

Pole mounting

Step 1:Turn off the power before installation.

Step 2:Wiring right in the wiring box("black" is connected to "L","white"connect to "N","green" to "Ground")and set the lamp into the bracket by the hole.(picture 1)

Step 3:We should fasten the four screws with a hex wrench,and finished (picture 2)
