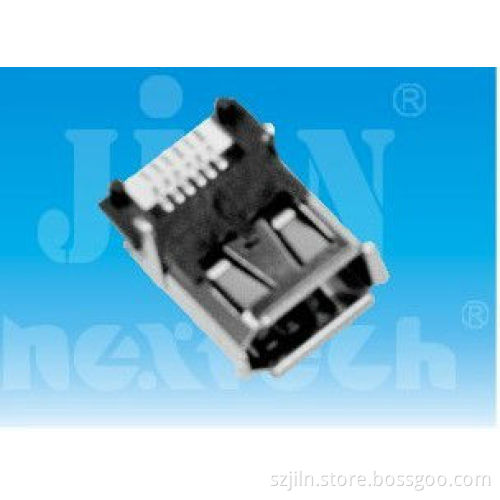

IEEE 1394 smt female connector 6p

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

IEEE 1394 Connector, 6P Female S.M.T.       SPECIFICATIONS:

Current Rating	1AMP
Operation Temperature	-40°C to +105°C
Contact Resistance	20mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 500V
Insulator Material	Polyester(UL94V-0) Standard: LCP
Contact Material	Phosphor Bronze
Contact Plating	Au or Sn over 50 u'' Ni

        Engineering drawing:    Ordering Information:

Connector Type	Contact Plating	Color Type	Function
S=Straight	SN: Tin	B=Black	S=Solder Type
R=Right Angle	S0: Gold Flash/Tin	W=White	D=Dip Type
M=S.M.T.	S1: 3u'' Gold/Tin
	S2: 5u'' Gold/Tin
	S3: 10u'' Gold/Tin
	S4: 15u'' Gold/Tin
	S5: 30u'' Gold/Tin
	Standard:S0

      Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
