connector housing crimp

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

JL5082 SERIES SPECIFICATIONS:

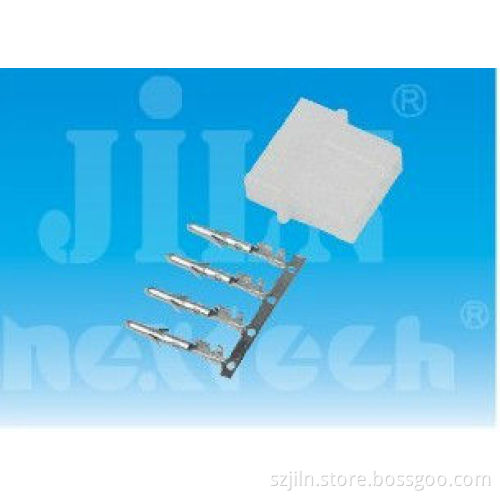

Crimp Terminal
Part No.	WF5082-TP02
Part Name	WF5082 Crimp Terminal
Contact	Phosphor Bronze
Plated	Tin-plated 50u’’ Min.
SPECIFICATIONS
Current Rating	5AMP
Temperature Range	-40°C to +105°C
Contact Resistance	10mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 1500V
Housing
Part No.	WF5082-HXXW02
Part Name	WF5082 Housing
Positions	4 Circuits
Insulator	Nylon-66 UL94V-0
Color	White
SPECIFICATIONS
Current Rating	5AMP
Temperature Range	-40°C to +105°C
Contact Resistance	10mΩ Max.
Insulation Resistance	1000MΩ Min.
Withstanding Voltage	AC 1500V

Engineering drawing:

Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
