1GE GPON ONT equipment

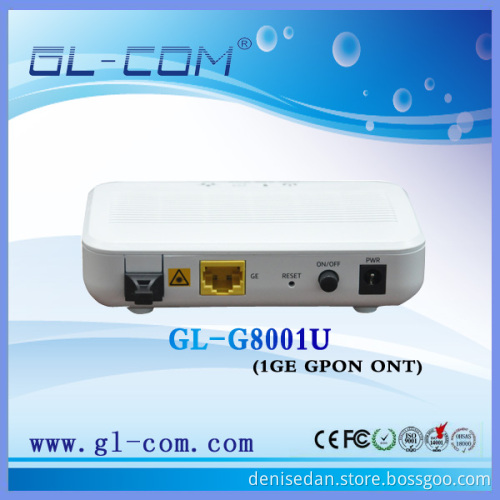

G8001U is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Features:

• Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade,etc.
• Integrated OMCI remote configuration and maintenance function.
• Functions like transceiver diagnostic monitoring, transmitter disable, etc.
• Fully compatibility with OLT based on Broadlight/Broadcom chipset.
• Support port monitoring, port mirroring, port rate limiting, port SLA,etc.
• Support auto polarity detection of Ethernet ports (AUTO MDIX).

Port features:

• 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
• 110/100/1000M port

Physical features:

• Power supply: 12VDC
• Power consumption: 4W
• Dimension:205mm*50mm*138mm(W*H*D)
• Net weight < 0.6Kg
• Temperature:
• Working temperature:0~55℃
• Storage temperature: -30~60℃
• Relative humidity: 10~90% (non-condensing)
