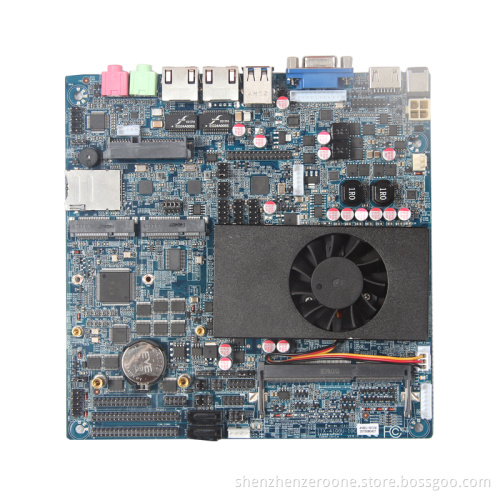

17x17CM THIN MINI-ITX/ 6xCOM port/ Dual 8 LVDS/ Integrated Intel Core i3 4100U Embedded Motherboard

CPU: Integrated Intel® Core™ i3 4100U Dual core 1.8GHz

GPU: Integrated Intel HD Graphics

Display output: VGA, built-in VGA pin, LVDS pin, HDMI, HDMI pin

Memory: 1*SO-DIMM, DDR3 1333\1600MHz memory, max support 8GB

Audio: On board Realtek ALC662 HD audio decoding controller

Network: On board 2*Realtek RT8111E Gigabit LAN

Storage: 2*SATA III 1*2.5" notebook hard disk interface

PCI-E: 1*MINI-PCIE 1*MINI-SATA 1*SIM

USB: 2*USB3.0 6*USB2.0 (need to extend)

COM: 10*COM (support 1*485)

USB: 2*USB3.0 port

Rear I/O interface:

2*LAN port(one of them can change to USB port)
1*VGA port
1*HDMI port
1*MIC-IN port
1*LINE-OUT port
1*DC port

Internal I/O interface:

3*F-USB2.0 pin (support extend 6*USB2.0 port)
1*F-AUDIO pin 1*J-1 backlight controller pin
10*COM pin 1*AUTO-ON
1*VGA pin 1*CLR-CMOS
1*HDMI pin 1*SYS-FAN
1*JPS1 pin 1*CPU-FAN
1*F-PANEL pin 1*SATA-SET
1*GPIO pin 1*SATA-PWR
1*PRINT pin 1*SPDFI pin
1*INVERT pin 1*SPEAKER pin
1*LVDS pin 1*J485
1*LVDS-PWR 1*CIR
1*ATX pin 1*JME

BIOS: AMI BIOS

Power supply: DC and 4pin ATX power supply

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60°C; 0%~95% humidity, no condensation

Size: 170X170MM THIN MINI-ITX
