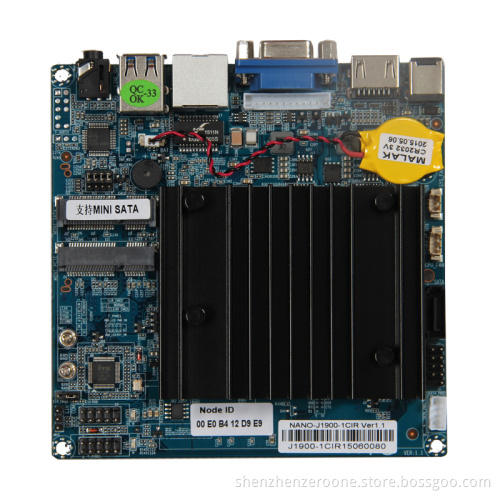

12x12CM NANO-ITX Embedded Motherboard/Intel Celeron J1900

CPU: Integrates Intel® Celeron® J1900 2.0GHz (max 2.41GHz)

GPU: Integrate Intel HD Graphics

Display output: VGA, built-in VGA pin, HDMI

Memory: 1*SO-DIMM, DDR3L 1333\1066MHz Memory, max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard 2*Realtek RT8111E Gigabit LAN

Storage: 2*SATAoeoe2.5inch notebook hard disk interface

PCI-E: 1*MINI-PCIE 1*MINI-SATA

USB: 1*USB3.0 3*USB2.0 (2*USB2.0 need to extend)

COM: 1*COM

Rear I/O interfae:

1*USB3.0 interface
1*USB2.0 interface
1*VGA interface
1*HDMI interface
1*LAN interface
1*LINE-OUT interface (support mic)
1*DC interface

Internal I/O interface:

1*USB2.0 pin (support extend 2*USB2.0 interface)
1*COM pin
1*F-PANEL pin
1*SYS-FAN pin
1*CPU-FAN pin
1*SATA-PWR pin
1*CLR-COMS jumper
1*F-AUDIO pin
1*VGA pin
1*CIR pin

BIOS: AMI BIOS

Power supply: DC-IN

Cooling system: Main board with CPU radiator

Working condition: -15~60°C; 0%~95°C relative humidity, without condensation

Size: 120X120MM
