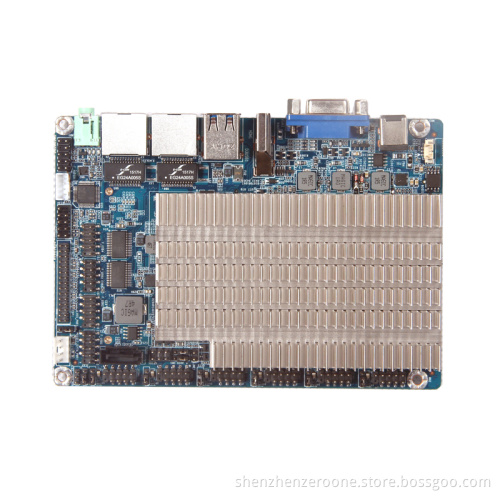

3'5 inch/6xCOM port/ 2xLAN port/ Integrated Intel Celeron J1900 Embedded board
- Payment Type:
- T/T
- Min. Order:
- 100
- Min. Order:
- 100
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 150000pcs/month |
Supply Ability: | 150000pcs/month |
Payment Type: | T/T |
CPU: Integrated Intel® Celeron® J1900 2.0GHz (max 2.41GHz)
Chipset: SOC
GPU: Integrated Intel HD Graphics
Display output: VGA, HDMI, EDP pin
Memory: 1*SO-DIMM, DDR3L 1333MHz memory, max support 4GB
Audio: On board Realtek ALC662 HD audio decoding controller
Network: On board 2*Realtek RT8111E Gigabit LAN
Storage: 1*SATA III
PCI-E: 1*MINI-PCIE 1*MINI-SATA
USB: 1*USB3.0 9*USB2.0 (8*USB2.0 need to extend)
COM: 6*COM (support 1*485)
Rear I/O interface:
1*USB3.0 port
1*USB2.0 port
2*LAN port
1*VGA port
1*HDMI port
1*LINE-OUT port
1*DC port
Internal I/O interface:
4*F-USB2.0pin (support extend 8*USB2.0 port)
6*COM-SET
6*COM pin
1*EDP pin
1*F_PANEL pin
1*LVDS-JP
1*AUTO-ON
1*SYS-FAN
1*SATA-PWR
1*SPEAKER pin
1*JME
1*J185
1*GPIO pin
BIOS: AMI BIOS
Power supply: DC and 4PIN ATX power supply
Cooling system: Main board with CPU radiator and fan
Working condition: -15~60°C, 0%-95% humidity, no condensation
