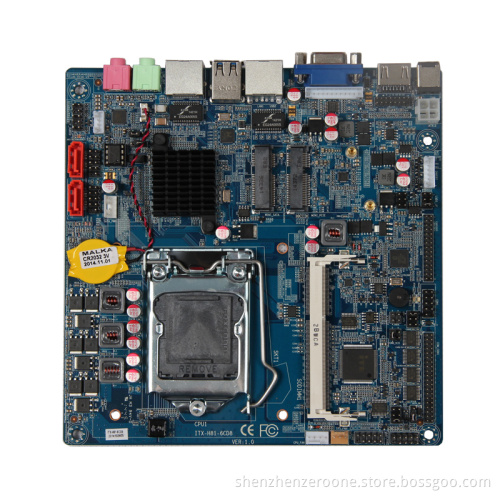

17x17cm Thin MINI-ITX Embedded Motherboard/LGA1150 processor/Intel H81 Chipset/6xCOM port/ Dual 8 LVDS

CPU: Supports LGA1150 processor

Chipset: Intel® H81

GPU: Integrate Intel CPU built-in display core

Display output: VGA.HDMI.VGA pin.LVDS pin

Memory: 1*SO-DIMM,DDR3 1600\1333\1066MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek 8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 2*MINI-PCIE(for M-SATA/WIFI) 1*SIM

USB: 2*USB3.0(4*USB2.0 need to extend)

COM: 6*COM(Need to extend,support 485)

Rear I/O interface:

2*USB3.0

2*LAN

1*HDMI

1*VGA

1*MIC-IN

1*LINE-OUT

1*DC

Internal I/O interface:

1*12PIN VGA pin

1*30PIN LVDS pin

1*HDMI pin

1*SPEAKER pin

6*COM pin

3*COM-SET

2*USB pin (Support extend to 4*USB port)

1*6PIN INVERT pin

1*8PIN AUDIO pin

1*F-PANEL pin

1*SATA-PWR

1*AUTO-ON

1*CLR-COMS

1*LVDS-JP

1*SYS-FAN pin

1*CPU-FAN pin

1*J-ME

1*ATX 12V

BIOS: AMI BIOS

Power supply: Built-in 4pin power supply interface

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15~60;0% ~ 95% relative humidity, without condensation

Size: 170X170MM
