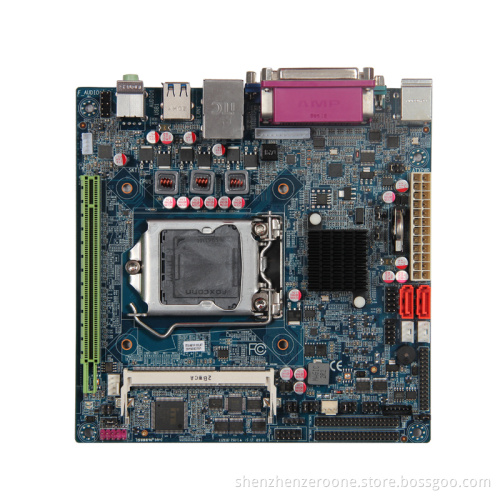

17x17CM MINI-ITX board/10xCOM port/Intel LGA1150 processor H81 chipset

CPU: Intel® LGA 1150 processor

Chipset: Intel® H81

GPU: Intel CPU built-in display cores

Display output: VGA, VGA pin, LVDS pin

Memory: 1*SO-DIMM, DDR3 1600\ 1333\ 1066MHz memory, max support 8GB

Audio: On board Realtek ALC269 HD audio decoding controller

Network: On board Realtek RTL8111F Gigabit LAN

Storage: 2*SATA II

PCI-E: 2*MINI-PCIE (for M-SATA/ WIFI) 1*PCIE 16X 1*SIM

USB: 2*USB3.0 6*USB2.0 (4*USB2.0 need to extend)

COM: 10*COM (9*COM need to extend)

Rear I/O interface:

2*USB3.0 port
2*USB2.0 port
1*VGA port
1*AUDIO port
1*PS/2 port
1*LAN port
1*COM port 1*LPT port

Internal I/O interface:

1*PCIE 16X 1*SPEAKER pin
1*24pin ATX-PWR 1*J485
1*12pin VGA pin 1*J-ME
2*USB pin 2*AUTO-ON
1*30pin LVDS pin 1*CLR-CMOS
1*LVDS-JP 2*SATA-SET
9*COM pin 1*J-TTL
3*COM-SET 1*SYS-FAN
1*J-LED 1*CPU-FAN
2*USB2.0 pin (support extend 4*USB2.0 port)
1*6pin INVERT pin
1*8pin AUDIO pin
1*F-PANEL pin

BIOS: AMI BIOS

Power supply: ATX 24pin power supply

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15~60°C; 0%~95% humidity, no condensation

Size: 170X170MM MINI-ITX
