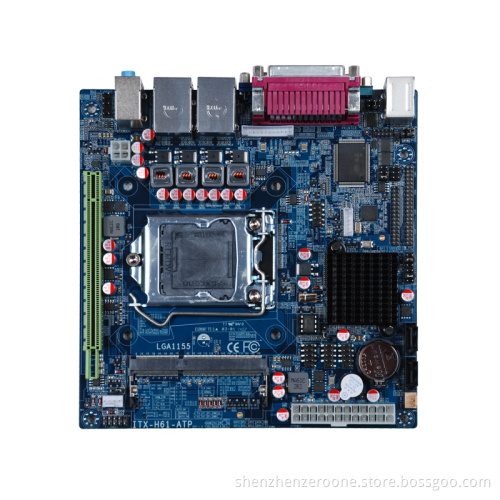

170X170MM MINI-ITX Embedded Motherboard/LGA1155 processor/Intel H61 Chipset/8xUSB/6xCOM

CPU: Support Intel 32nm/22nmLGA1155 processor

Chipset: Intel® H61

GPU: Intel CPU built-in graphic chip

Output display: VGA.VGA Pin.LVDS Pin

Memory: 1*SO-DIMM,DDR3 1333\1066MHz Memory, max support up to 8GB

Sound: Onboard Realtek ALC662HD audio decoding controller

Network: Onboard Realtek RTL8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 2*MINI_PCIE(form_SATA\WIFI) 1*PCIE16X 1*SIM

USB: 8*USB2.0 (4*USB2.0 need to extend)

COM: 6*COM(5*COM need to extend)

Rear I/O interface:

4*USB2.0 port
1*VGA port
1*AUDIO
1*PS/2 port

2*LAN port

1*COM port

1*LPT printer port

Internal I/O interface:

1*12PIN VGA Pin

1*30PIN LVDS Pin

5*COM Pin

2*USB Pin(support extend 4*USB port)

1*6PIN INVERT Pin

1*8PIN AUDIO Pin

1*F-PANEL Pin

1*GPIO Pin

1*AUTO-PWR

1*CLR-COMS

1*LVDS-PWR

4*COM-FUN

1*SYS-FAN Pin

1*CPU-FAN Pin

1*DEBUG Pin

BIOS: AMI 32M BIOS

Power supply: ATX 24+4 Pin

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15-60℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM MINI-ITX
