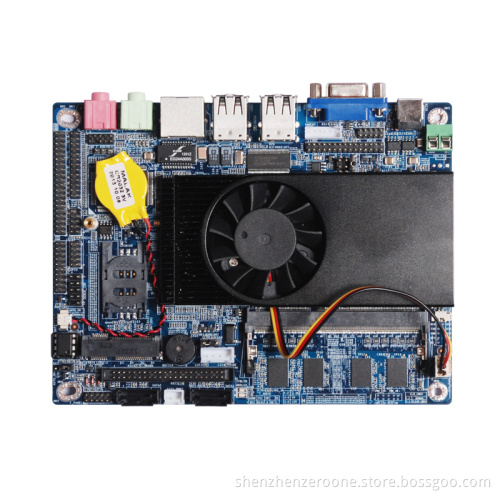

155X117MM EPIC Embedded Motherboard/Intel Atom D525 processor/ Intel ICH8M chipset/6xCOM port

CPU: Intel® Atom™ D525 Dual core 1.8GHz

Chipset: Intel® ICH8M

GPU: Integrate Intel GM3150

Display output: VGA, built-in VGA pin, LVDS

Memory: 1*SO-DIMM(slot optional),DDR3 800MHz Memory,with 2GB memory

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 1*SIM 2*MINI-PCIE(for M-SATA/WIFI)

USB: 6*USB2.0(2* need to extend)

COM: 6* COM(6* need to extend)

Rear I/O interface:

4*USB2.0 port
1*RJ-45 network port

1*VGA port

1*DC

1*AUDIO

Internal I/O interface:

1*30PIN LVDS

1*10pin VGA pin

1*IDE

6*COM pin

1*6PIN INVERT

1*F_PANEL pin

1*SPDIF pin

1*GPIO pin

1*F_AUDIO pin

1*CLR_CMOS

1*AUTO-ON

1*SYS-FAN pin

1*CPU-FAN pin

2*BAT

BIOS: AMI 8M BIOS

Power supply: DC-IN

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 155X117MM
