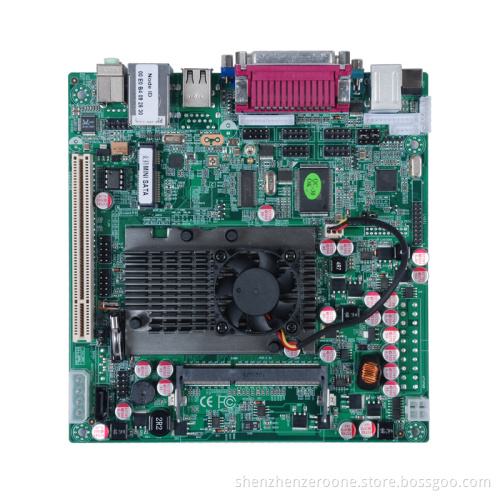

17x17cm MINI-ITX Embedded Board/Intel Atom D525 processor/Intel NM10 chipset/Intel GM3150 GPU/1xLAN port
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 150000pcs/month |
Supply Ability: | 150000pcs/month |
Payment Type: | T/T |
Incoterm: | EXW |
Transportation: | Air |
CPU: Intel® Atom™ D525
Chipset: Intel® NM10
GPU: Integrated Intel® GM3150
Display output: VGA. built-in VGA pin.LVDS pin
Memory: 1*SO-DIMM,DDR3 800\667MHz Memory,max support up to 4GB
Sound: Onboard Realtek ALC662 HD audio decoding controller
Network: Onboard Realtek 8111E Gigabit LAN
Storage: 1*SATAⅡ
PCI-E: 1*PCI 1*MINI-PCIE(for WIFI)
USB: 8*USB2.0(4*USB2.0 need to extend)
COM: 6* COM(5*COM need to extend)
Rear I/O interface:
4*USB2.0 port
1*DC IN port
1*VGA port
1*LPT port
1*AUDIO port
Internal I/O interface:
1* LVDS pin
1*4pin DC12V
2*USB2.0 pin(support 4*USB2.0 port)
1*IDE-PWR
1*F-AUDIO pin
1*LVDS-PWR
1*12pin VGA pin
1*INVERT pin
1*PRINTER pin
5*COM pin
2*COM-FUN
BIOS: AMI 32M BIOS
Power supply: DC-IN, built-in 4pin Dc port
Cooling system: Main board with CPU radiator and fan
Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation
Size: 170X170MM
1*RJ-45LAN port
1*COM port
1*PS2 port
1*SYS-FAN pin
1*PS/2 pin
1*CLR_CMOS
1*SATAⅡ
1*F-PANEL pin
