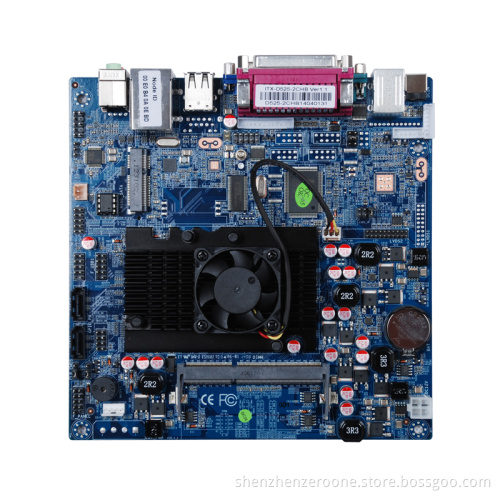

17x17cm Mini-ITX Embedded Motherboard/Intel Atom D525 processor/Intel ICH8HB chipset/Intel GM3150 GPU/2xCOM port

CPU: Intel® Atom™ D525 Dual core 1.8GHz

Chipset: Intel® ICH8HB

GPU: Integrate Intel® GM3150

Output display: VGA.built-in VGA pin.LVDS

Memory: 1*SO-DIMM,DDR3 800MHz Memory,max support up to 4GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8105E 100M

Storage: 2*SATA Ⅱ

PCI-E: 1*MINI-PCIE(for M-SATA/WIFI)

USB: 8*USB2.0(4* need to extend)

COM: 1* COM 1*COM(need to extend)

Rear I/O interface:

4*USB2.0 port

1*VGA port

1*COM port

1*RJ-45 network port

1*LPT port

1*AUDIO

1*PS/2

1*DC port

Internal I/O interface:

1*20PIN LVDS pin(Can upgrade to support single 8)

1*12pin VGA pin(Can upgrade to support 2*VGA pin)

1*PS/2 pin

1*COM pin

1*6PIN INVERT

1*4pin ATX

1*PANEL pin

1*GPIO pin

1*AUDIO pin

1*SATA-PWR pin

1*CLR_CMOS

1*AUTO-ON

1*SYS-FAN pin

1*CPU-FAN pin

BIOS: AMI 8M BIOS

Power supply: DC-IN, built-in 4pin Dc power supply port

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM MINI-ITX
