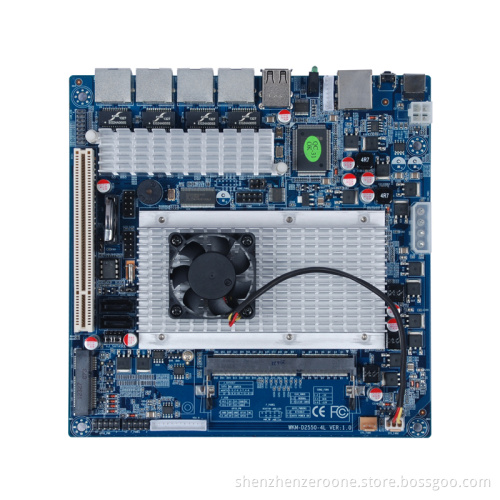

Network Security Board with 4xRJ-45 GLAN, Intel Atom D2550 processor and Intel NM10 chipset

CPU: Intel® Atom™ D2550 Dual core 1.86GHz

Chipset: Intel® NM10

GPU: PowerVR SGX545, support DirectX 10.1

Display output: Built-in VGA pin

Memory: 1*SO-DIMM, DDR3 800\1066MHz Memory, max support up to 4GB

Network: 4*Intel 82583V Gigabit LAN

Storage: 2*SATA II

PCI-E: 1*PCI 1*MINI-PCIE (for M-SATA/WIFI) 1*CF

USB: 6*UBB2.0 (4*USB2.0 need to extend)

COM: 2*COM (1*RJ45 to COM)

USB: 2*USB2.0 interface

Rear I/O interface:

4*RJ-45 GLAN interface
1*RJ-45 to COM interface
1*DC interface
1*RESET button
1*LED (Power hard disk indicator light)

Internal I/O interface:

2*USB2.0 pin(support extend 4*USB interface)
1*12pin VGA pin
1*PS/2 pin
1*COM pin
1*GPIO pin
1*F-PANEL pin
1*4pin DC power supply interface
1*AUTO-ON jumper
1*CLR_CMOS jumper
1-4 LAN-LED pin
2*SYS-FAN pin

BIOS: AMI 16M BIOS

Power supply: DC-IN, built-in 4pin DC power supply interface

Cooling system: Built-in CPU radiator and fan

Working condition: -15~60°C; 0%~95% relative humidity, no condensation

Size: 170X170MM
