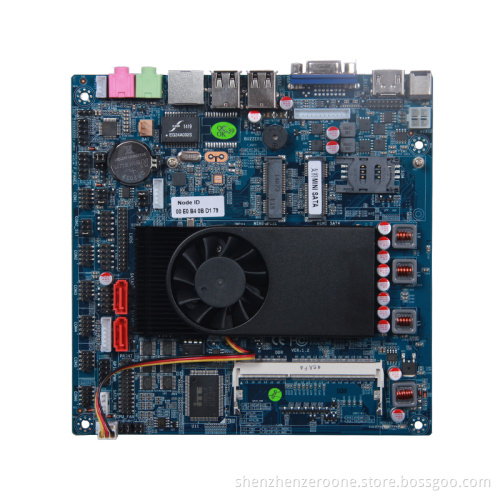

17x17cm Thin MINI-ITX Embedded Motherboard/Intel Celeron 1037U processor/Intel NM70 chipset/1xLAN port/HDMI/VGA/USB2.0

CPU: Intel® Celeron® Dual core C1037U 1.8GHz

Chipset: Intel® NM70

GPU: Integrate Intel HD Graphics

Display output: VGA.built-in VGA pin.LVDS.HDMI.HDMI pin

Memory: 1*SO-DIMM,DDR3 1333\1066MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 2*MINI-PCIE(for M-SATA/WIFI) 1*SIM

USB: 10*USB2.0(6* need to extend)

COM: 6* COM

Rear I/O interface:

4*USB2.0 port

1*VGA port

1*HDMI port

1*RJ-45 internet port

1*DC

1*MIC-IN

1*LINE-OUT

Internal I/O interface:

1*30PIN LVDS pin

1*12pin VGA pin

1*LPT pin

6*COM 2*COM-SET

1*4PIN SPEAKER

1*6PIN INVERT

2*USB2.0 pin(support extend to 4*USB port)

1*4pin ATX

1*SPDIF

1*GPIO pin

1*PS/2 pin

1*F-PANEL pin

1*CLR_CMOS

1*AUTO-ON

2*SATA-PWR pin

2*CPU-FAN pin

1*16pin HDMI pin

BIOS: AMI 32M BIOS

Power supply: DC-IN,built-in 4PIN DC power supply interface

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM Thin MINI-ITX
