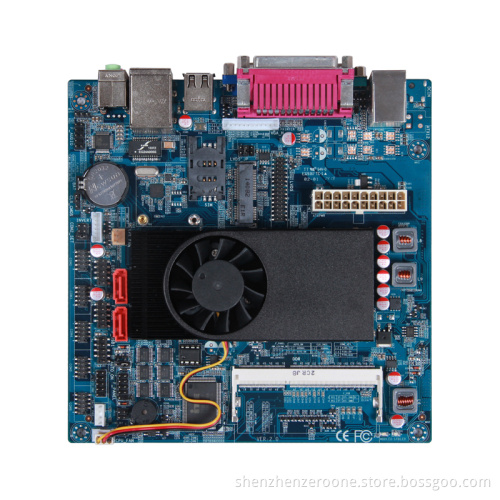

17x17cm MINI-ITX Embedded Motherboard/Intel Celeron 1037U processor/Intel NM70 chipset/1xLAN port/COM port/USB2.0

CPU: Dual core Intel® Celeron® 1037U 1.8GHz

Chipset: Intel® NM70

GPU: Integrate Intel HD Graphics core

Display output: VGA, buit-in VGA pin, LVDS

Memory: 1*SO-DIMM, DDR3 1600\1333\1066MHz memory, max support 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: *SATA II

PCI-E: 1*MINI-PCIE (for M-SATA/WIFI) 1*SIM

USB: 8*USB2.0 (2*USB2.0 need to extend)

COM: 5*COM

Rear I/O interface:

6*USB2.0 port
1*VGA port
1*COM port
1*RJ-45 network port
1*LPT
1*AUDIO
1*PS/2

Internal I/O interface:

1*30pin LVDS
1*12pin VGA pin
5*COM pin
1*6pin INVERT
1*20pin ATX
1*PANEL pin
1*SPDIF pin
1*GPIO pin
1*AUDIO pin
1*CLR_CMOS jumper
1*AUTO-ON jumper
2*SATA-PWR pin
1*SYS-FAN 1*F-PANEL pin

BIOS: AMI 32M BIOS

Power supply: 20pin ATX power supply

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60°C; 0%-95% humidity, no condensation

Size: 170X170MM MINI-ITX
