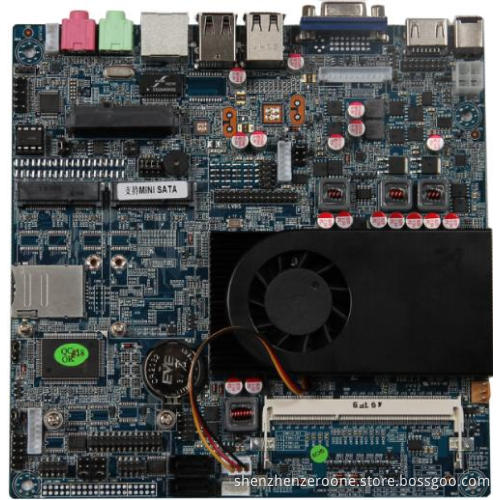

17x17cm Thin MINI-ITX Embedded Motherboard/Intel Celeron 1037U processor/Intel NM70 chipset/2xCOM port/Dual 8 LVDS

CPU: Dual Core Intel® Celeron® C1037U 1.8GHz

Chipset: Intel® NM70

GPU: Integrate Intel HD Graphics

Display output: VGA, built-in VGA pin, HDMI, HDMI pin, LVDS pin

Memory: 1*SO-DIMM, DDR3 1333\1066MHz memory, max support to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RTB111E Gigabit LAN

Storage: 2*SATA II 2.5inch hard disk interface

PCI-E: 2*MINI-PCIE(for M-SATA/ WIFI) 1*SIM

USB: 6*USB2.0 (2*USB2.0 need to extend)

COM: 2*COM

Rear I/O interface:

4*USB2.0 interface
1*VGA interface
1*HDMI interface
1*LAN interface
1*DC
1*MIC-IN
1*LINE-OUT

Internal I/O interface:

1*30pin LVDS
1*12pin VGA pin
1*LPT pin
1*HDMI pin
2*COM
2*COM-SET
1*4pin SPEAKER 1*6pin INVERT
1*USB2.0 pin(support extend 2*USB interface)
1*4pin ATX 1*SPDIF pin
1*GPIO pin 1*PS/2 pin
1*F-PANEL pin 1*CLR_CMOS jumper
1*AUTO-ON jumper 1*SATA-PWR pin
1*CPU-FAN pin 1*SYS-FAN pin

BIOS: AMI BIOS

Power supply: DC-IN, built-in 4pin DC power supply interface

Cooling system: Main board with CPU radiator and fan

Working conditon: -15~60°C; 0%-95% relative humidity, no condensation

Size: 170X170MM Thin MINI-ITX
