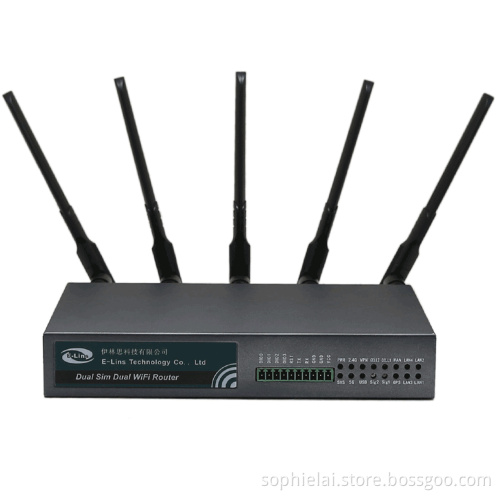

E-Lins VPN USB Dual SIM Gigabit 4G Router

Industrial wireless dual sim 4g router, suitable for 4G LTE wireless network and compatible to 3G/2G. Built-in watchdog, wireless radio and sim card slot. Detachable antenna. Support Dual SIM, VPN, WiFi, GPS, Serial, POE, Port forwarding, DMZ, DDNS, remote control, and optimized EMC design, high stable and reliable.

1. Main

The H700 series Cellular Router is designed for establish a 2G/3G/4G cellular wireless network and share a cellular broadband internet connection. The H700 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the internet using a cellular network. By connect to cellular broadband network; an internet connection can be accessed and shared virtually anywhere within a wireless broadband network.

E-Lins` mobile data products are widely used in more than 50 countries and regions, and more than twenty industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

2. Hot Spot

H700 series is with two module two sim cards (two sim working online): two sim work together to backup (hot standby for failure backup, switch to backup line immediately if main line is failed);

Two sims can be any type from 2G/3G/4G at GPRS/EDGE/HSDPA/HSUPA/HSPA/HSPA+/LTE/CDMA1x/CDMA2000 EVDO. (Please confirm the type before order)

Main:

Built-in 2G/3G/4G industrial cellular module, insert SIM/UIM card to work directly;

Built-in two sim card slot;

RJ45 LAN *4;

RJ45 WAN *1;

USB 3.0 * 1

SD card slot * 1

Option feature:

1. WiFi

2. GPS

3. Serial to cellular gateway (RS232 + RS485 or RS232 + RS232 port)

4. WAN RJ45 port

5. Internal battery

Redundancy backup: cellular1+ cellular 2+ WAN RJ45

3. Wireless M2M Application

Remote Data Monitor and Control

CCTV, security surveillance

Water, gas and oil flow metering and schedule

AMR (automatic meter reading)

Power station monitoring and control

Remote POS (point of sale) terminals, ATM,

Traffic signals monitor and control, Traffic info guidance

Oil field, weather forecast, environmental protection, street lamp monitoring and control

Early Warning of Mountain Torrent

Fleet management

Power distribution network supervision

Central heating system supervision

Weather station data transmission

Hydrologic data acquisition

Vending machine

Telemetry, SCADA

Vehicle logistics and diagnostics controlling

Parking meter and Taxi Monitor

Telecom equipment supervision (Mobile base station, microwave or optical relay station)

4. H700 Series Wireless Broadband Router Spec

Mobile Networks:

GSM EDGE/GPRS;

CDMA1x;

3G UMTS WCDMA (HSDPA/HSUPA/HSPA/HSPA+);

3G TD-SCDMA

3G CDMA EVDO Rev 0 and Rev A;

4G LTE;

Wireless Radio Band:

3G UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD) 2100Mhz or 850/1900/2100MHz or 850/900/1900/2100Mhz;

2G GSM 900/1800Mhz dual band or 850/900/1800/1900Mhz quad-band;

CDMA1x/EVDO: 800/1900Mhz or 450Mhz option;

3G TD-SCDMA 2010~2025MHz/1880~1920MHz;

4G FDD LTE:

Band 1--2100Mhz

Band 2--1900Mhz

Band 3--1800Mhz

Band 4-AWS(1700/2100Mhz)

Band 5--850Mhz

Band 7--2600MHz

Band 8--900Mhz

Band 12--700Mhz

Band 13--700(B13)Mhz

Band 17--700(B17)/AWS

Band 19-800Mhz

Band 20--DD800Mhz

Band 21

Band 25 –1900Mhz G Block

Band 31– 450Mhz

Other FDD band-

4G TDD LTE (TD-LTE):

Band 41 – 2500/2600Mhz

Band 40 -- 2300Mhz

Band 39 – 1900Mhz

Band 38 -- 2600Mhz

Other TDD band-

Wireless Radio Bandwidth:

4G LTE: Max. 100/150/300Mbps downlink, 50Mbps uplink

HSPA+: Downlink 21/42Mbps, Uplink 5.76Mbps;

HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 236,8 kbps, Uplink 118 kbps;

GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;

CDMA EVDO:

Rev B: 14.7Mbps downlink, 5.4Mbps uplink

Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

Bandwidth (bandwidth binding mode): Twice bandwidth (depends on network quality)

Main:

SMS/Voice (optional): SMS/Voice call to control router to be online, offline and reboot;

GPS (Optional): Yes;

DTU (Optional):

With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).

Details:

Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;

Serial Parity: none, even, odd;

Serial Databits: 7, 8;

Serial stopbits: 1, 2;

Serial flow control: none, hardware, software;

Mode: Server (up to 4 server centre, can OEM to be more), Client;

Protocol: TCP, UDP ;

Heart Beat : Yes;

VPN: PPTP, L2TP, IPSec, GRE, Tunnel, Option for OpenVPN and others

Internal Battery: Optional (8000mAH, 4000mAH *2)

VRRP: Optional

BGP, OSPF: Optional

SNMP: Support V1, V2. V3

VLAN: Support multi-LAN IP address, support two IP address

Wi-Fi: Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional.

Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

Fail Over Redundancy (network Backup feature):

Auto-dial feature, keep alive link;

LCP, ICMP check;

Built-in watch dog;

Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;

Cold Backup (WAN RJ45, Dual WAN Cellular, WiFi Client) is default, Hot Backup (Two Cellular)is default, Hot Backup(WAN RJ45 and WAN Cellular) is option;

Cold Backup=Two lines not online at the same time. One line online and the other line standby, switch freely with triggers;

Hot Backup=Two lines are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.

Management System: Optional

POE: Optional for LAN/WAN RJ45

Protocol

Protocol support: TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, Syslog (local and remote), NAT, xDSL, NTP, QoS, SNMP, RIP, support firmware update locally or remotely.

LAN/WAN

4X 10/100M LAN port (RJ45 interface)

1X 10/100M WAN port (RJ45 interface)

(WAN RJ45 can convert into LAN RJ45 to get 5 LAN RJ45)

Antenna

2 antenna for Wi-Fi (detachable, 50Ω SMA female interface)

4 antenna for Cellular (detachable, 50Ω SMA female interface)

2 antenna for GPS (detachable, 50Ω SMA female interface)

Led

SYS*1, VPN*1, Signal*1, Cell*1, WAN*1, LAN*4, WiFi*1, CHR*1, GPS*1

Button: Reset

Console: 1 console port

Serial port: RS232 or RS485 built-in terminal block interface

IO Port: 2

Configuration Interface: Web/Telnet/CLI, support remote management

At command: support

UIM/SIM Card Slot: Support 1.8V/3V UIM/SIM

DC Jack:

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1

Power supply:

DC5V-50V, typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option;

Power consumption

Idle: 30mA@12VDC

Max: 420mA@12VDC

Average:220mA@12VDC

OS

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

Physical

Operating Temperature:

Work temperature: -30°C to 70°C option for -30°C to 80°C

Storage temperature: -40°C to 85°C

Humidity: 95% Maximum (Non-condensing)

Dimensions: 180mm x 110mm x 31mm

Weight:

705~725g (not including the antenna)
