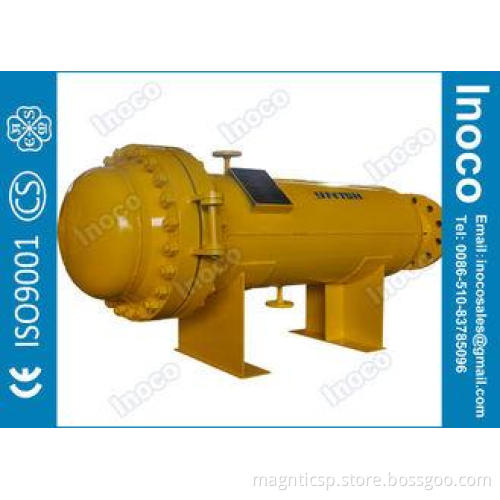

Carbon Steel Gas filter separator with cartridge to remove solids and mesh pad to remove mist

Quick Detail:

• Pressure relief valve
• Sight glass/level gauges with gauge cock
• Liquid level controller
• Pressure indicator
• Temperature indicator connection
• Instrument gas supply drip pot
• Instrument gas header
• Pressure safety valve
• High/low pressure regulator
• Lifting lugs for safe handling

1,BOCIN-500series gas filter separator

Description >>

BOCIN 500 Series filter separator is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Filter separator is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc. Series 500 Separating filter is combined by BOC mesh demister and BOC coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered.

Technical parameters >>
1 Work pressure: 0.1~40.0Mpa 2 Work temp: -40~+300℃
3 Separate accuracy: 0.3,1,3,5μm 4 Separate efficiency: 99.98%
5 Max flowrate: 6500000Nm3/h

Parameters >>
1 Design code ASME sec. vill div.1

2 Available material: Carbon steel, SS316/304...
3 Finish: Blasted and painted for cs glass bead for ss vessels, or to meet spec.
4 Bolts and hex nuts: Plated carbon steel,or to meet specification
5 O’RINGS: buna n or epdm standard viton, TEV or other optional

Options >>
Quick open blind plate(insert type,hooptype,locked ring type)
Relief valve
Drain valve
Inlet/outlet ball valve
Differential pressure switch
Differential pressure indicator
Level indicator
Level switch
Skid-mounted

2, Gas filter separator Operation priciple

The wire mesh filter separator working process has three stages:

Step 1: Gravity separating
Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;

Step 2: Screening holes separating
Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.

Step 3: Leaf separating

With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.

3, Gas filter separator Specification

Applications:

BOCIN Horizontal double barrel and/or Vertical filter separators are designed to provide efficient liquid/solid removal and high gas capacities. The coalescer filter section removes bulk liquid and solid particles and also coalesces fine liquid droplets into larger ones. These larger droplets are then removed in the second Double Pocket (DP) Vane] section. BOCIN utilizes high capacity DP Vanes to increase the separator’s throughput and thus minimize the separator diameter.

The double barrel configuration allows you to maximize the gas flow in the upper barrel without re-entrainment while the liquid drops into the lower barrel. BOCIN offers standard coalescing filters that can be replaced periodically or designs that can be cleaned and reused.

Competitive Advantage:

BOC GAS Series Filter Separator Structural Features

Site level and pressure display, remote transmission available upon user’s request

Manual and automatic liquid discharge modes optional for users

Available for fast-opening blind or flange connections

Available for horizontal or vertical erection based on site situations

Filter elements with different materials optional based on the media

Reasonable equipment layout, easy for installation and maintenance
