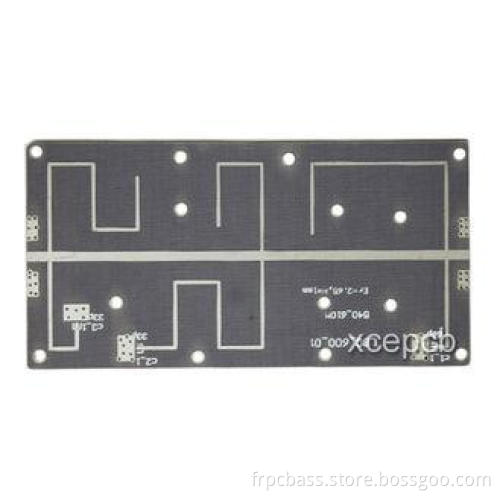

Permittivity ER=10 Taconic PCB CER-10 Based On Military Grade Material
Specification:
| Board size | 28*12cm | Board thickness | 1.2mm |
| Layer | 4 | Base material | taconic |
| Min line space | 5mil | Min line width | 5mil |
| Brand | XCET | Origin | China |
Parameter
CER-10 is a ceramic loaded DK 10 laminate, based on a woven glass reinforcement. CER-10 is a result of Taconic’s expertise in both ceramic fill technology and in coated PTFE fabrics.
CER-10 exhibits exceptional interlaminar bond strength and solder resistance. CER-10’s proprietary composition results in low moisture absorption and uniform electrical properties.
CER-10’s woven glass reinforcement ensures excellent dimensional stability and enhances flexural strength. This DK 10 laminate exhibits low Z-axis expansion (CTE 46 ppm/°C), allowing for plated-through-hole reliability in extreme thermal environments.
CER-10 laminates can be sheared, drilled, milled and plated, using standard methods for PTFE/woven fiber-glass materials.
Application:
- High Power Amplifier, TMA, TMB, LNA: for GSM, UMTS, 3G, PCS, PCN, WCDMA, TD-SCDMA, EDGE, CDMA2000
- Repeater
- Phase Shifter
- Antenna
- Filters and Coupler
- Passive Components
Advantage:
- Exceptional Interlaminar Bond
- Low Moisture Absorption
- Enhanced Dimensional Stability
- Low Z-Axis Expansion
- Stable Dk Over Frequency
- Circuit Miniturization
- Increased Flexural Strength
Taconic Model THK ER
| TACONIC | TLF-35 | 0.8 | 3.5 |
| TLA-6 | 0.254,0.8,1,1.5, | 2.65 | |
| TLX-8 | 0.254,0.8,1,1.6 | 2.55 | |
| RF-60A | 0.64 | 6.15 | |
| TLY-5 | 0.254,0.508,0.8 | 2.2 | |
| TLC-32 | 0.8,1.5,3 | 3.2 | |
| TLA-35 | 0.8 | 3.2 |
