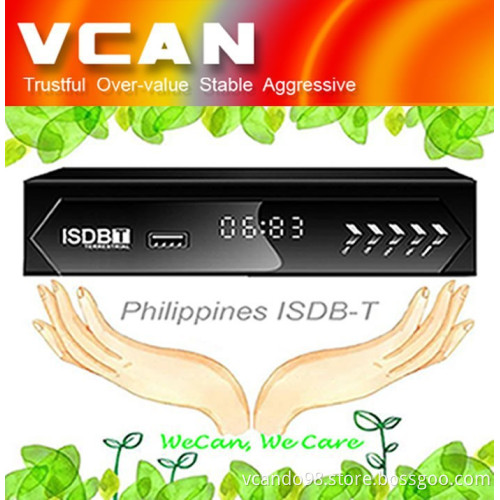

VCAN1047 Philippines Home ISDB-T Digital TV Receiver box TV Plus black box MPEG4 HDMI USB PVR Remote

Features:

1.USB 2.0 for software update/PVR/movie,music,picture media play back

2.Fully compliant with ISDB-T (MPEG 2/MPEG 4/ H.264)

3.Full HD output in 720p, 1080i, 1080p

4.Less than 0.5 Watt in standby

5.Multi-lingual OSD and user-friendly UI

6.Parental Control, Teletext, EPG supported

7.Favorite Group supported

8.PVR recorder supported with external USB

9.RCA CVBS outpuinterface

RF Input/Demodulation

Connector Type:F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH

Input Frequency:(UHF)470-866MHz,(VHF)170-230MHz

Bandwidth:6,7,8MHz

Signal Input level:-80dBm - -20dBm

Input Impedance:75Ohm

ANT Power:5V(On/Off),Imax=100mA

Demodulation Scheme"QPSK,16-QAM,64-QAM

Demodulation Type:OFDM, fully compliant with ISDB-T Standard

Media Features

Picture:JPEG,BMP,PNG

Power Supply

Adapter

AC Input:100-240VAC@50/60Hz±5%

Power Consumption:Max10W

Memory

Flash:32Mbit

DDRII Memory:512Mbit

Physical Characteristics

Physical Size:170mm * 96mm * 40mm

Front Panel

Key:POWER, CH+,CH-

Indicator:LED Indicator for Power On/Off

Remote Control Input:Infra-red receiver

Display:Option for 4 Digits 7-segment LED display

Connector:1xUSB2.0 interface

Rear Panel

Connector:2 x F-Female connector for ANT.IN and Loop THROUGH

HDMI 1.3 interface, up to 1080p

1xAV RCA( CVBS, L/R)

1xCOAXIAL

Remote Specifications

Battery:(AAA 1.5V)*2

Operation Distance:8m Min.(front distance from receiver)

Operation Angle Range:±45°(horizontal),±20°(vertical)
