Waterproof SMD 3 in 1 P4.91mm Rental LED Display Module Wit

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

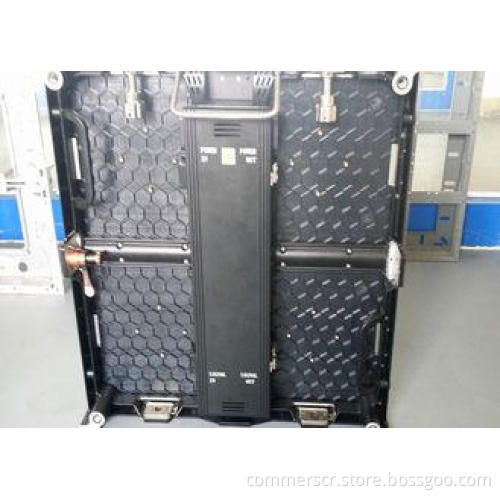

Indoor SMD P4.91mm Aluminum Die Cast 500X500 Cabinet Rental LED Display Screen

1. Quick Detail:

(1) SMD P4.81 Aluminum Die Cast Cabinet
(2) 500mm×500mm Cabinet Size

(3) Light weight and slim design

(4) Big View Angle

(5) IP68 Protect Grade

2. Description:

Dosatronics LED displays are high tech product with our own patent. Especially outdoor LED display for advertising has high brightness, high contrast, high refresh rate…All are popular both in domestic and overseas market. We adopt unbeatable product stability through strict Quality Control System. It is very correct for you to choose our company, our LED display products. All of them has 3 years quality warranty since all component are extremely good. They can bring you large fortune in a very short time.

3. Applications:

Our Full Color SMD Indoor P4.81 LED Display is mainly for outdoor usage, such as commercial advertising,

mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange

centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways,

airports, harbors, etc.

4. Specifications:

Model No.	DS-SRI-P4.81
Pixel Pitch	4.81mm
Module Size	250*250mm
Module Resolution(pixels)	52*52
Cabinet Size	500mm×500mm
Panel Resolution(pixels)	104×104
Pixel Configuration(RGB)	SMD 3 in 1
Pixel Density(pixels/㎡)	43222
Brightness(cd/㎡)	1500
Best Viewing Distance(m)	6-50
Average Power Consumption(W/㎡)	300
Waterproof Level	IP65
Drive Method	1/13scan
LED SPEC	2121
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~100
Video Frame Rate(Hz)	≥ 60HZ
Display Refresh Rate(Hz)	≥ 1000HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Wavelength	R 620-625 G 520-525 B 470-475
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

5. Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

6. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

7. Package

Carton. Fumigation-Free wooden case or Flight case

8. Control System Connection

Dosatronics Controls system

9. Our products have three unique advantagess

(1) Our module shell is aluminum,other companies are plastic.so it is lighter and thinner.

(2) Our module have strong waterproof and heat-dissipation, the module can work in the water of 100 degrees or 40 degrees blow zero environment.

(3) Display can work under extremely cold ,heat,humidity and other extreme environments.
