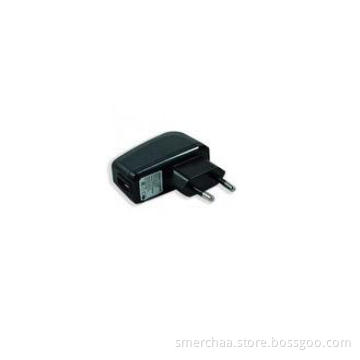

12V 1A Power Adapter With Switch , 100V - 240V Universal AC Power Adapter
PRODUCT FEATURES:
1. Green power, full complies with CEC level 5, MEPS V EUP2011
2. High power density,super power supply,fixed frequency control circuit make sure stable performance.
3. Full protection functions with OHP,OCP, OVP, OTP.
5. 100% safety circuit design ,compliance with all the safety approvals.
6. Environment friendly,energy saving,meet the energy efficiency level 5
7. Portable,compact and smart design
8. High-efficiency circuit design ,make sure the lowest heat.
9. Excellent primary insulation,hi-frequency transformer with 100% vacuum permeance
10. Radiation against ,build-in electromagnetism resistant filter,meet EMI test standard.
11.Widely used for audio&video products, cell phone devices,charging, ADSL, set-top-box,home
appliance.
11. Any inquiries of OEM /ODM are welcome. USB and DC charging cable are for optional.
SPECIFICATIONS:
| Specifications: | Noise immunity |
| Input Voltage:100-240V AC | Radiation:61000-3-2 |
| Input Current:0.3A | Static discharge:61000-4-2 |
| Frequency:50-60HZ | Radiation electromagnetic field: 61000-4-3 |
| Efficiency:comply with energy efficiency level 5 | The fastest instantaneous discharge:61000-4-4 |
| No-load power consumption: Max 0.3W | Lightning:61000-4-5 |
| Output voltage adjustable rate:+_5% | Conduction harass:61000-4-6 |
| Voltage interruption/aberrance:61000-4-11 |
PROTECTION FUNCTIONS:
1. Short circuit protection: adapter can recover normal work automatically after the short circuit problem clear.
2. Over current protection:adapter can recover automatically normal work after over current problem clear.
3. Over voltage protection:Protection circuit will be started if output voltage over quota voltage
150%~180%,adapter can recover normal work automatically after problem clear.
RELIABILITY
1. Burned out:charging load 85%-95% ,40±5℃
2. Leakage current:0.25mA, Max:254 Vac
3. Insulation and withstand voltage(between primary and secondary):3000Vac,60S,Max 5mA
4. MIBF:Full loading above 50000 hours based on MIL-HDBK-217F standard with 25℃
WORKING CONDITIONS
1. Working temperature: 0℃~40℃ based on full loading
2. Keeping temperature:-20℃~85℃
3. Humidity:no condensation of moisture with humidity 5%~95%
COMPLIANCE WITH EMC
1. North America:FCC PART 15 CLASS B
2. European Market:EMC :EN55013/EN55022 CLASS B
3. China Market:GB4943
OBTAINED CERTIFICATIONS:
1. GB(global)IEC 60950-1
2. CCC (China)GB4943-2001
3. GS(European)EN60950-1
4. CE(European)EN55022,55024,55013,55020/55014-1,2
5. BS (UK)BS EN60950-1/BS EN60065
6. ETL (North America) UL60950-1
7. SAA (Australia)AS/NZS60950-1
8. KC (Korea)K60950-1
9. PSE (Japan)J60950-1
