High quality 12vdc to 220vac solar hybrid inverter built in charger

High quality 12vdc to 220vac solar hybrid inverter built in charger

USD100

≥5 Piece/Pieces

Payment Type:: L/C, T/T, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50,000pcs/Month
Supply Ability:	50,000pcs/Month
Payment Type:	L/C,T/T,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Certificate:	CE, ISO, RoHS
Transportation:	Ocean,Air

Product Description

High quality 12vdc to 220vac solar hybrid inverter built in charger

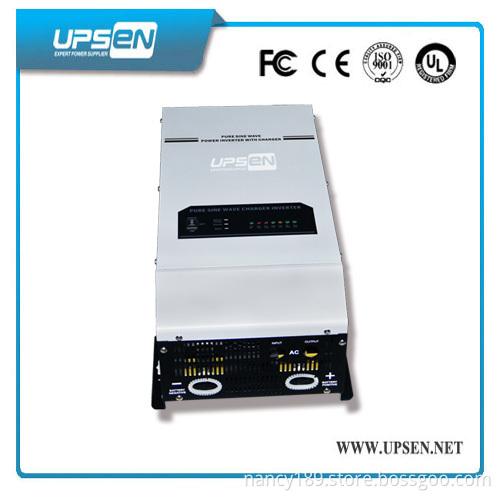

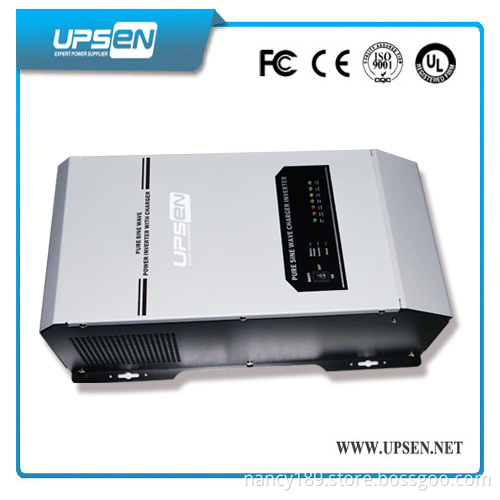

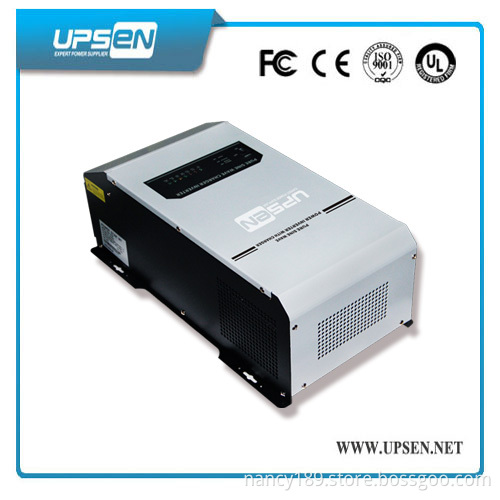

Pure Sine Wave Inverter Charger Power Star Plus Series 1000W-12000W (1ph in/1ph out)
Key Features:
1:Remote control function
4:Safe and reliable with built in fuse

2:Fast and powerful charger with 35A - 100A

3:Pure sine wave output, available for sensitive load

5:Superior starup ability, can start electric equipment directly

6:Automatically transfer between battery and line modes

7:Generator compatibly and external battery connection achievable

8:Dynamic current loop control technology to ensure inverter reliable operation.
9:AVR (Auto Voltage Regulation) Function under AC Mode is available for option

10:With automatic over-current and output short circuit protection to avoid damage the equipment

Protection against:
Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector) Blackouts.Output short circuit protection.
,Temperature protection,Overload protection etc.
Application
UPSEN Power Srar Inverter can be used for various appliances, Emergency Lighting Systems,Toys,Cycle Use,Portable VTR/TV, tape recorders, radio,Power tools,lawn mowers,vacuum cleaners,Cameras and photographic equipment etc.

Power Star Plus Series
Model No.	PS Plus Series
Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W	8000W	10000W	12000W
AC Input
AVR Function	Available for Option
Waveform	Pure Sine Wave
Voltage	120VAC/230VAC
Acceptable Voltage	194-243VAC164-243VAC(wide mode)						154VAC~273VAC
Line Low Transfer	85V±4%/184(154 wide mode±4%)						154Vac±4%
Line Low Return	95V±4%/194(164 wide mode±4%)						164Vac±4%
Line high Transfer	135V±4%/253±4%						273Vac±4%
Line high Return	127V±4%/243±4%						263Vac±4%
Frequency	50Hz or 60Hz (Auto sensing)
Line Low Transfer	47Hz for 50Hz, 57Hz for 60Hz						40Hz±0.3 for 50Hz
Line high Transfer	55Hz for 50Hz, 65Hz for 60Hz						80Hz±0.3 for 50Hz
AC Output
Waveform	Pure Sine Wave(bypass mode sync to input)
Voltage	120/220/230/240VAC(bypass mode sync to input)						230VAC(bypass mode sync to input)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz±0.3Hz(bypass mode sync to input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes,shutdown after 10ms						Yes,shutdown after 10s
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V		24V/48V			48V
Minimum Start Voltage	10V for 12V,20V for 24V,40V for 48V						40Vdc
Low Battery Alarm	10.5V for 12V,21V for 24V,42V for 48V						44Vdc±1.2Vdc
Low Battery Transfer	10V for 12V,20V for 24V,40V for 48V						40Vdc±1.2Vdc
High Voltage Alarm	16V for 12V,32V for 24V,64V for 48V						64Vdc±1.2Vdc
Max Charging Current	35A/70A						70A	85A	100A
Over Charge Voltage	15.7V for 12V,31.4V for 24V,62.8V for 48V						62.8V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts						<75W
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
	(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged
	(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded
	shutdown(red lighting),LED7 Saving Mode(green lighting)
3-LED Display	Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.

Audible Alarm	Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds.
Protections	low battery,over charging,over temp,over load
Communications	RS-232/USB(custom-made)
Enviromental
Operating Environment	0-40ºC,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	22	35	38	40	60	66	70
Dimension LWH	442218179mm			598218179mm			750520310mm
*Specification is subject to change without prior notice.
