Online Double Conversion Modular UPS with 380V/400V/415V

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	500,000pcs/Month
Supply Ability:	500,000pcs/Month
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE, ISO, RoHS
Transportation:	Ocean,Air

Product Description

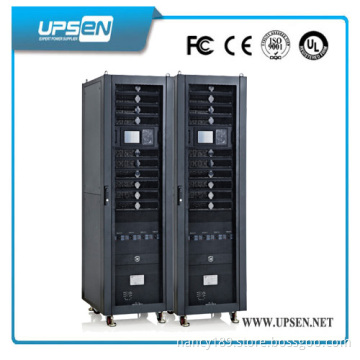

Online Double Conversion Modular UPS with 380V/400V/415V

Model: Modular Online UPS Power Melody Star Series (3ph in/3ph out)

Modular UPS Quick View
1:UPS with Modular design and hot swappable
2:Modular UPS with Large touch screen LCD with plenty of information
3:UPS with high frequency transformerless tech
4:Online double-conversion with DSP control
5:High instantaneous overload capacity

Key Features

1:IGBT modules rather than discrete components are applied in the power module.
2:Each individual module is configured with independent controller, avoid single point failure risk.
3:Large touch screen LCD with plenty of information.
4:UPS with Modular design and hot swappable.
5:Double DSP controller for individual power module.
6:High immunity to external disturbances.
7:Intelligent module and system protection design.
8:Independent charger for batteries, intelligent battery management system.
9:Standard emergency power off (EPO).
10:Inbuilt power distribution for input and output connection.
11:Incredible low noise system design.
12:Intelligent module and system protection design.
13:Digital control for the whole parts including rectifier, inverter, charger and discharger.
14:Support battery cold start and mains supply self-starting

Technical Specification

MS Series 10K-200Kva
Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(WDH)(mm)	6-module cabinet	6009001600
	10-module cabinet	6009002000
	Module	400600133 (10KVA/15KVA/20KVA)

Competitive Advantages:

1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
