High Frequency Online UPS for Data Room with 100/110/115/120/127VAC

High Frequency Online UPS for Data Room with 100/110/115/120/127VAC

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50, 000PCS/Month
Supply Ability:	50, 000PCS/Month
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE, ISO, RoHS
Transportation:	Ocean,Air

Product Description

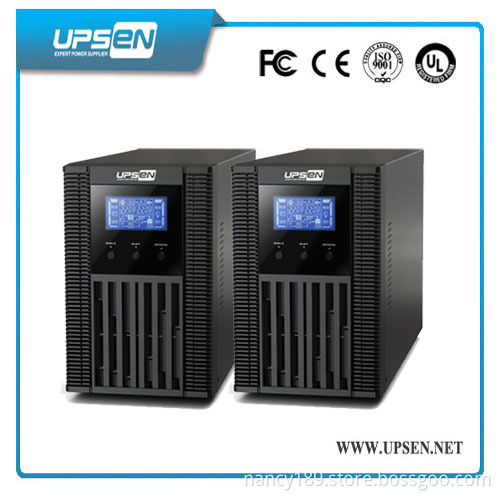

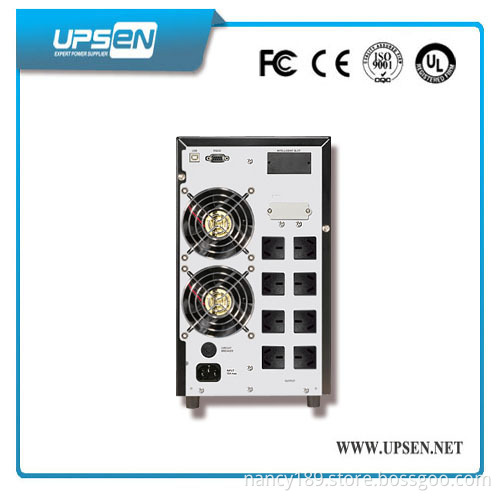

High Frequency Online UPS for Data Room with 100/110/115/120/127VAC

Key Features
1: True double-conversion
2: Input power factor correction
3: Output power factor 0.8
4: Converter mode available
5: Microprocessor control optimizes reliability
6: Built-in super smart charger, shorten 50% of charging time
7: Large blue black light LCD for detailed real-time UPS status display.
8: LCD Display with Advanced Monitoring for Easy UPS Management
9: Charger capacity expansion to 6A for long-run models
10:Smart SNMP works well with either USB or RS-232 together
11:Intelligent battery management maintains battery automatically to prolong the
battery life

Applications
Home,Office,Computer,PC,Data Room,Communication,Server,network devices,Portable VTR/TV,tape recorders,radio,etc.

Technical Specification

GREEN STAR ONLINE UPS SELECTION GUIDE
MODEL		G1K (L)	G2K (L)	G3K (L)
PHASE		Single phase with ground
CAPACITY		1000 VA / 800 W	2000 VA / 1600 W	3000 VA / 2400 W
INPUT
Nominal Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range		55-145 VAC or 110-300 VAC
Frequency Range		40Hz ~ 70 Hz
Power Factor		>= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode)		50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio		3:1
Harmonic Distortion		<= 3 % THD (Linear Load); <= 6 % THD (Non-linear Load)
Transfer Time	AC to DC	Zero
	Inverter to Bypass	4 ms (Typical)
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
To AC Mode		88%	89%	90%
To Battery Mode		83%	87%	88%
BATTERY
Standard Model	Battery Type	12 V / 9 AH	12 V / 7AH	12 V / 7 AH
	Numbers	2	6	6
	Typical Recharge Time	4 hours recover to 90% capacity
	Charging Current (max.)	1.0 A
	Charging Voltage	27.4VDC ± 1%	82.1 VDC ±1%	82.1 VDC ±1%
Long-run Model*	Battery Type	Depending on the capacity of external batteries
	Numbers	3	6	8
	Charging Current (max.)	1.0A/2.0A/4.0A/6.0 A
	Charging Voltage	41.0VDC ± 1%	82.1 VDC ±1%	109.4VDC ±1%
INDICATORS
LCD		Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continously sounding
PHYSICAL
Standard Model	Dimension, D x W x H (mm)	397 X 145 X 220	419X190X318
	Net Weight (kgs)	13	26	28
Long-run Model*	Dimension, D x W x H (mm)	282 x 145 x 220	397 X 145 X 220
	Net Weight (kgs)	4.6	6.8	7.4
ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser

* Long-run model is only available in 200/208/220/230/240VAC systems.
