High Frequency Rack Mountable UPS 220V 50Hz with Inbuilt Battery LED

High Frequency Rack Mountable UPS 220V 50Hz with Inbuilt Battery LED

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	500,000pcs/Month
Supply Ability:	500,000pcs/Month
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE, ISO, RoHS
Transportation:	Ocean,Air

Product Description

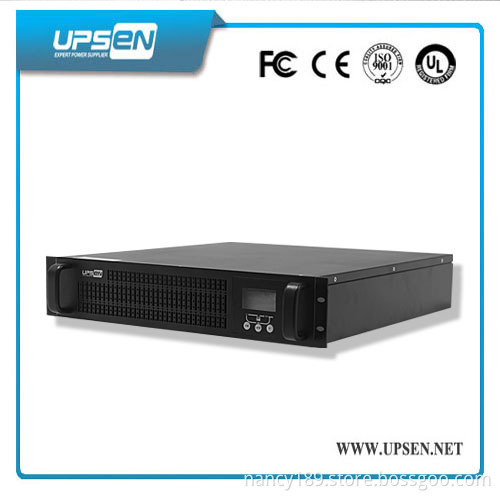

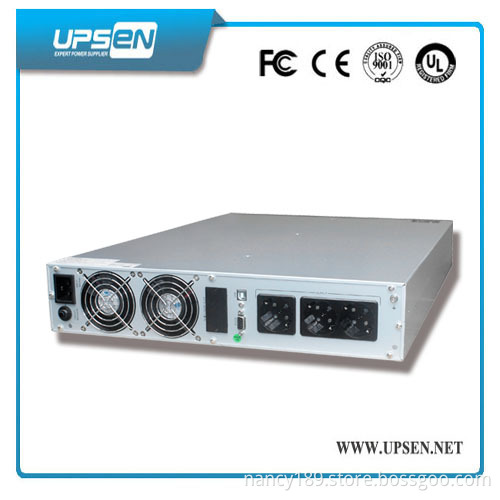

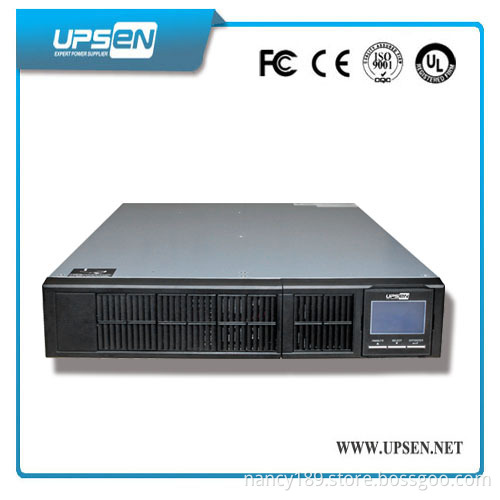

high frequency Rack mountable UPS 220v 50hz with inbuilt battery LED
UPS Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)

Key Features:
1:Rack mount 19"design 2U/3U Height to save space
2:High Frequency and double conversion online technology
3:Fully digitized microprocessor control
4:Smart RS232, USB, RJ11, RJ45 communication with monitoring software
5:Microprocessor control guarantees high reliability
6:Advanced battery management
7:Selectable various output range and operating mode
8:Rack Mounted UPS with output power factor 0.8
9:Automatic battery charging in UPS off mode
10:True on-line double conversion technology with advanced microprocessor control
11:Optional USB communication port
12:Short circuit and overload protection
13:Built - in dry contact/RS-232/EPO communication port
14:Fun speed automatically changes as load varies

Applications
RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for servers, data-center critical network devices, Wind Power System,Production Equipment,Military,Medical Systems,Instrumentation etc.

Technical Specification

Rack Mount Star Series RM1K-10K
Model		RM1K	RM2K	RM3K	RM1KL	RM2KL	RM3KL	RM6KL	RM10KL
Input	Phase	Single Phase with Ground
	Nominal Voltage	110115//120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%						110/115/120Vac or 220/230/240VAC± 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)						50Hz ± 0.05Hz ( Battery mode)
	Waveform	Pure Sine Wave
	Power Factor	0.7/0.8 Optional
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min., 130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default "NO", user adjustable to "YES"						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED /LCD indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°C
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (W x D x H) mm	482 x 420 x 88 (2U)	482 x 420 x 88 (2U) or (3U Internal Batteries)		482 x 420 x 88 (2U)			482.6 x 600 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	24/36VDC	48/72VDC	72/96VDC	24/36VDC	48/72VDC	72/96VDC	192/240VDC
	Battery Numbers & Capacity	2/3Pcs *12V7.2Ah	4/6Pcs *12V7.2Ah	6/8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	7min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1A			4.2A
	Charging Voltage	41.1Vdc±0.6V	110Vdc±0.4V		41.1Vdc±0.6V	110Vdc±0.4V		274Vdc±1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (W x D x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---

Competitive Advantages:

1:Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2:Good after-sales service, we will be full responsible for any faults caused by our side
3:Professional experience in power field more than 10 years
4:Professional technical support before and after sales
5:Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6:Free OEM & ODM Service
7:Competitive price, quality and mature products
