1Ch Passive Video & Power Video Balun
-
$4.001-0 Piece/Pieces
-
$4.50≥1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Features:
Specification:

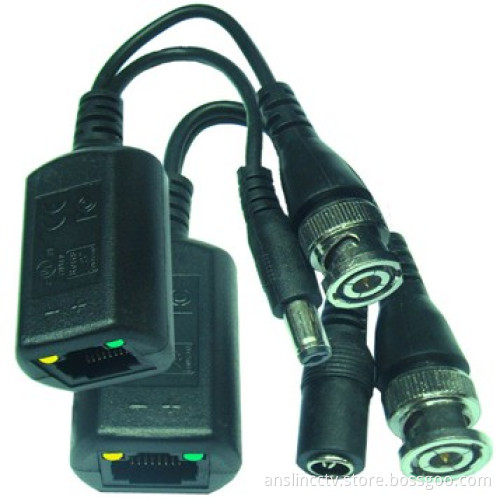

*1 Channel Video & Power Passive Video Balun (2-in-1)
*Support Analog,HD (AHD, CVI,TVI) cameras
*Video Transmission by UTP CAT 5
*Transmission Distance: About 400M(With Passive) / About 150~300M for AHD,CVI, TVI Cameras
*Outstand anti-interference and Built-in Surge Protection
*RJ45, DC; Easy Installation
Specification:
| Maximum distance | 400M |
| Coaxial Cable in/out Socket port | Male BNC, Female BNC, F head (optional) |
| Twisted-Pair Cable in/out socket port | RJ45 |
| Power in/out Port | 2.1/5.5mm Power Plug |
| Coaxial Cable in/out impedance | 75Ω |
| Twisted-Pair cable in/out impedance | 100Ω |
| Video CMRR/ Attenuation | 60dB/ 0.3dB Typ |
| Wire Type |
UTP CAT5,24-16AWG
|
| Working temp. / relative humidity | -10ºC to +55ºC / <95% |
