Advertising P6.25mm Outdoor Full Color LED Display for Parking Lot , Metro
Description
The LED display has super large pictures, strong visual effect, high brightness and long service life. It has rich colors and diversified displaying modes. The appearance is unique and novel, thus improving the scientific level of the city and enriching people’s cultural life. There are also interfaces for Sound signal and video signal. The gray level si 65536 level, and the brightness, contrast,saturation, chroma can be adjusted by manual and sensor. Show all sort of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously. Can be used outdoor in all kinds of circumstance, and excellent capability of antisepsis, waterproof. More faster to assemble or disassemble it without any tool.
specifications
1. Indoor led Display technical parameter
Pixel Density(pixel/㎡) | 25600 |
White Balance Brightness (cd/㎡) | ≥5000(adjustable) |
Max Power Consumption | 300W/cabinet |
Average Power Consumption | 150W/cabinet |
Color Temperature | 3200-9300(adjustable) |
View Angle | Horizontal 110°;Vertical 110° |
Display Work Method | 1/10 scan |
Digital Processing | 14 bit |
Gray Scale | 65536 levels per color |
Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
Waterproof | Yes |
Working Temperature(ºC) | -20~+45 |
Humidity(RH) | 10% - 80% |
Stored Temperature (ºC) | -30~+60 |
Lifetime (50%Brightness)(Hours) | ≥100,000 |
Input Voltage(VAC) | AC 220(or 110V) |
Input Power Frequency(Hertz) | 50 to 60 |
Data Connection | Super CAT6 Cable or Fiber |
Operating System | Windows(98/2000/XP/Vista) |
Blind Spot Rate | ＜0.00001 |
Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) | ＜2 |
2. Indoor LED Display Module
Pixel Configuration | SMD3535 | Pixel Pitch | 6.25 mm |
| Module Resolution | 40 x 40 | Module Size(W*H) | 250mm x 250mm |
Weigth Per Module | 0.65kg | Max Power Consumption | 50w |
3. Indoor LED Display Cabinet
Cabinet Size(W*H) | 500mm × 500mm | Module Qty | 4 pcs |
Cabinet Resolution | 80 x 80 | Cabinet Area | 0.25㎡ |
Weight Of One Cabinet | 8.5 kg | Cabinet Pixel | 25600 |
Cabinet Flatness | ＜0.2/㎡ | Cabinet Material | Die Casting Cabinet |
Applications

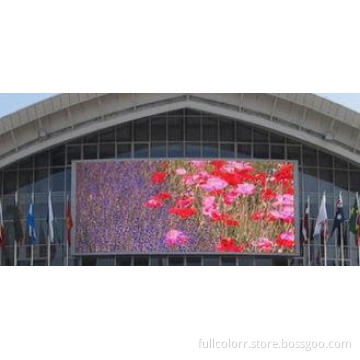

The LED display is widely used in public places, advertising, city road network, city parking lot, railway station and metro as well as other transportation guidance systems. and some hall.
competitive advantage
1. 24/7 online support service.
2. Every LED Product Is a Good Quality .
3. Every LED Product Will Have Better Price.
4. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
5. Two Years Maintenance Service With Free.
