Product Description

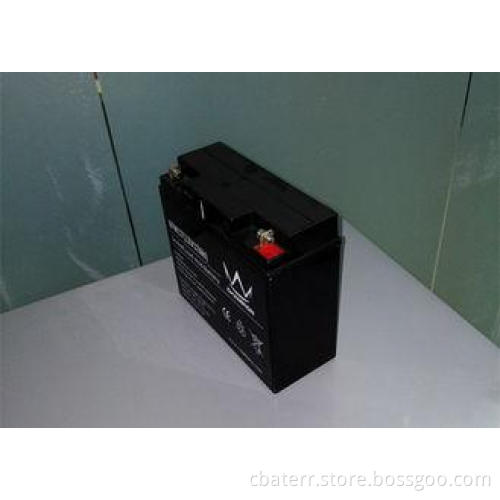

good quality inverter batteries 12 v 17ah vrla gel maintenance free lead acid agm

Description:

Champion inverter batteries :

(1) plate : Positive and negative plates consist of active mass and a lead-calcium alloy grid structure

(2) Safety valve : The safety valve opens when there is an abnormal increase in internal pressure caused by overcharging or misusage. Gas is released from the battery to return the pressure back to normal.

(3) Container and covers: Container and covers are made of ABS or PP resin, with superior strength and acid resistance characteristics. The container and covers are sealed to prevent electrolyte and gas leakage.

(4) Other parts :Some other parts of this model,like terminal,case,terminal protector.electrolyte.active materials are in good quality.You can check the quality by sample.

Applications:

(1). Inverter system

(2). UPS system

(3). On grid power,off grid power system

(4). Emergency power systems

(5). Power Tools

(6). Power backup supply and starting system

(7). Toys and so on

Specifications:

Model	Voltage	Capacity	Dimension(mm)				Terminal	Weight
Model	(V)	(Ah)	L	W	H	TH	Type	(Kg±5%)
6FM0.8	12	0.8	96	25	62	62	AMP	0.34
6FM1.2	12	1.2	97	43	52	58	F1	0.55
6FM2	12	2.0	178	35	61	67	F1	0.80
6FM2.2	12	2.2	178	35	61	67	F1	0.83
6FM2.3	12	2.3	178	35	61	67	F1	0.90
6FM2E	12	2.0	70	48	98	104	F1	0.75
6FM2.3E	12	2.3						0.80
6FM2.6	12	2.6						0.85
6FM2.5	12	2.5	104	48	70	70	+F2-F1	0.90
6FM2.8B	12	2.8	104	48	70	70	+F2-F1	0.98
6FM2.8	12	2.8	67	67	97	103	F1	1.00
6FM2.8A	12	2.8	132	33	98	104	F1	1.00
6FM2.9	12	2.9	79	56	99	105	F1	1.05
6FM3.2	12	3.2	134	67	61	67	F1	1.25
6FM4	12	4.0	90	70	101	107	F1/F2	1.36
6FM3.6	12	3.6						1.25
6FM4.5	12	4.5						1.45
6FM5	12	5.0						1.52
6FM4.2	12	4.2	195	47	70	76	F1	1.42
6FM5A	12	5.0	140	48	102	103	+F2-F1	1.60
6FM5A	12	5.0	151	65	94	100	F1/F2	1.7
6FM5.0S	12	5.0	151	65	94	100	F1/F2	1.75
6FM5.5S	12	5.5	151	65	94	100	F1/F2	1.9
6FM6.5	12	6.5	151	65	94	100	F1/F2	1.98
6FM6.8	12	6.8	151	65	94	100	F1/F2	2.00
6FM7E	12	7.0	151	65	94	100	F1/F2	2.05
6FM7	12	7.0	151	65	94	100	F1/F2	2.1
6FM7A	12	7.0	151	65	94	100	F1/F2	2.15
6FM7.2	12	7.2	151	65	94	100	F1/F2	2.20
6FM7.2A	12	7.2	151	65	94	100	F1/F2	2.25
6FM7.5	12	7.5	151	65	94	100	F1/F2	2.30
6FM8.5	12	8.5	151	65	94	100	F1/F2	2.43
6FM9	12	9.0	151	65	94	100	F1/F2	2.50
6FM9A	12	9.0	151	65	94	100	F1/F2	2.60
6FM10	12	10.0	151	65	111	117	F2/F1	2.80
6FM10A	12	10.0	151	98	95	101	F2/F1	3.05
6FM10S	12	10.0	181	77	167	167	F17/F18	3.1
6FM10L	12	10.0	181	77	117	117	F2/F17	3.30
6FM10H	12	10.0	151	98	95	101	F2/F1	3.30
6FM12	12	12.0	151	98	95	101	F2/F1	3.45
6FM12H	12	12.0	151	98	95	101	F2/F1	3.60
6FM15	12	15.0	181	77	167	167	F17/F18	4.8
6FM17	12	17.0						5.1
6FM18	12	18.0						5.25
6FM20	12	20.0						5.7
6FM20S	12	20.0	181	78	172	172	M5	6.5
6FM24	12	24.0	166	175	125	125	F17/F18	7.6
6FM24S	12	24.0						7.35
6FM26	12	26.0						7.8
6FM28	12	28.0						8.2
6FM24	12	24.0	165	125	175	182/175	F18	7.5
6FM28A	12	28.0	165	125	175	182/175	F18	8.6
6FM31	12	31	195	130	155	166	M6	9.6
6FM33	12	33						10
6FM35	12	35						10.5
6FM38	12	38	197	165	170	170	M6	12
6FM40	12	40	197	165	170	170	M6	12.5
6FM40H	12	41	197	165	170	170	M6	13
6FM42	12	42	197	165	170	170	M6	13.5
6FM45	12	45	197	165	170	170	M6	14
6FM50	12	50	229	138	211	214	M6	15.5
6FM55	12	55	229	138	211	214	M6	16.5
6FM50A	12	50	229	138	205	210	M6	15.5
6FM60	12	60	260	168	211	214	M6	19
6FM60E	12	60	260	168	211	214	M6	18.8
6FM70	12	70	260	168	211	214	M6	21.5
6FM75	12	75	260	168	211	214	M6	22.5
6FM80	12	80	260	168	211	214	M6	23
6FM65	12	65	350	167	179	179	M6	20
6FM80A	12	80	350	167	179	179	M6	22
6FM90E	12	90	306	169	211	214	M6	26.5
6FM95	12	95	306	169	211	214	M6	27
6FM80S	12	80	330	171	214	220	M6	26
6FM90A	12	90	330	171	214	220	M6	27.3
6FM70S	12	90	330	171	214	220	M6	24.5
6FM90A	12	90	330	171	214	220	M6	27.5
6FM90B	12	90	330	171	214	220	M6	28
6FM100E	12	100	330	171	214	220	M8	29
6FM100	12	100	330	171	214	220	M8	30
6FM110	12	110	330	171	214	220	M8	32
6FM110B	12	110	330	171	214	220	M8	33
6FM120A	12	120	409	176	225	225	M8	34
6FM90S	12	90	406	173	208	238	M8	28
6FM110S	12	110						32
6FM120	12	120						34
6FM120B	12	120	280	265	207	227	M8	37.5
6FM110A	12	110	280	265	207	227	M8	35.5
6FM140	12	140	280	265	207	227	M8	39.5
6FM130	12	130	280	265	207	227	M8	37.5
6FM134	12	135	340	172	282	284	M8	42
6FM110SS	12	110	485	172	240	240	M8	35
6FM135S	12	135	485	172	240	240	M8	42
6FM150	12	150	485	172	240	240	M8	43
6FM150S	12	150	530	207	210	213	M8	46.5
6FM160	12	160	530	207	210	213	M8	47.5
6FM180	12	180	530	207	210	213	M8	52.5
6FM135SS	12	135	522	238	218	221	M8	49
6FM160S	12	160	522	238	218	221	M8	47.5
6FM180S	12	180	522	238	218	221	M8	56
6FM190S	12	190						57.5
6FM200	12	200						60
6FM220	12	220	522	238	218	221	M8	62
6FM225	12	225	522	238	218	221	M8	63
6FM240S	12	240	521	269	220	223	M8	65
6FM250	12	250	521	269	220	223	M8	71
6FM250A	12	250	521	269	220	223	M8	71
6FM250E	12	250	521	269	220	223	M8	69.5

Competitive Advantage:

sealed and maintenance free operation
flexible design for multiple installation positions
Non-spillable construction design
exceptional deep discharge recovery performance
ABS containers and covers(UL94HB,UL94V-0)optional
safety valve installation of explosion proof
high quality and high performance
low shelf discharge characteristics
